53' Rigid Inflatable powerboat

The Ribco RSY53 is the new Flagship high performance rigid inflatable from Ribco powerboats in Greece. This performance powerboat design is the product of close collaboration between the Ribco in house design team and our team at BRYD; achieving a striking high performance best in class powerboat design for the superyacht and hi-end leisure markets.

The exciting yacht design supports a tri stepped hull developed by Lorne Campbell. With an outboard version incorporating 4x Mercury 600hp duo-prop engines or, twin Volvo Penta D11 725hp with Top system surface drive propulsion. The Yacht produces an impressive, expected speed of over 68 knots.

BRYD supported the design process with:

  • Naval Architecture, Stability & Weights Engineering
  • Full 3d modelling design and development
  • Helm station and interior design
  • Structural Scantlings and engineering
  • Systems design and Engineering

Launching in 2024 The RSY53 is set to become the flagship of the Ribco range. It is an exceptional example of a highly successful design collaboration. Achieving an ultra-high performing craft with luxury interiors at the highest level.

Deck GA Ortho - Outboard
Lower Deck GA Ortho - Outboard
Deck Plan
Interior GA

Ribco RSY 53 Design

Exterior

As you would expect the exterior design of the Ribco RSY 53 is an evolution of the design language that has become synonymous with the Ribco DNA, who are Known for creating stylish and highly progressive performance Rigid inflatables designs. This ethos and progressions are rooted deep within the angular striking lines of the yacht’s exterior.

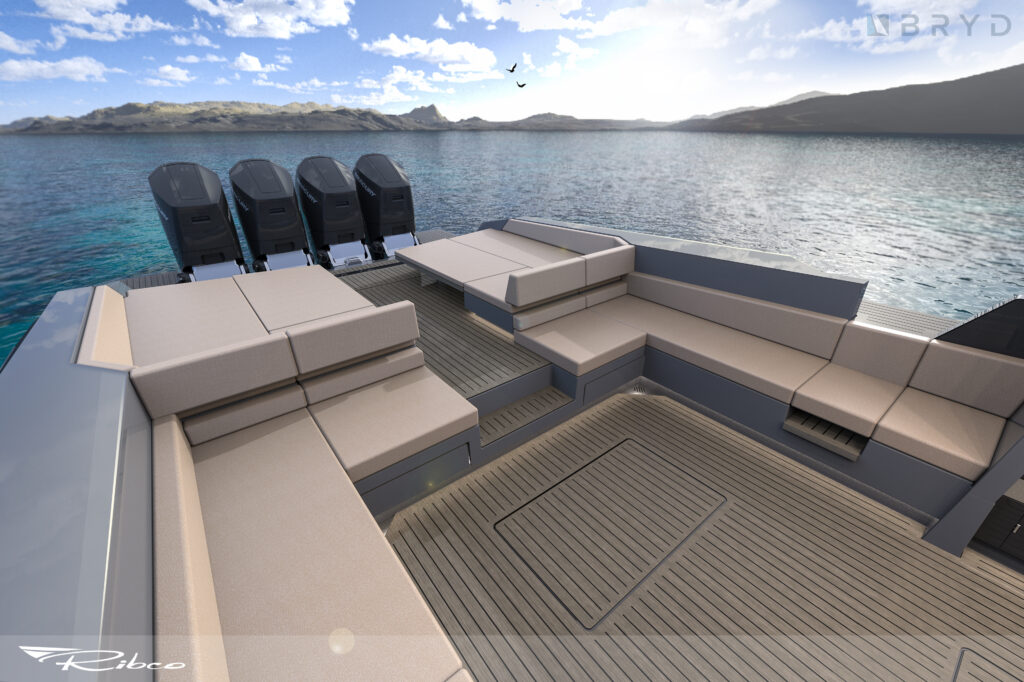

The deck layout allows for space and comfort with an array of seating and table space, providing an exceptional space for socialising and lounging. The design can support a sliding door option into the interior saloon and helm station providing a practical option for colder climates or just to escape the elements at high speeds.

Both versions are provided with a spacious stern beach platform area and are equipped with opacmare swim ladders, enabling you to enter and exit the water with ease.

Front Perspective

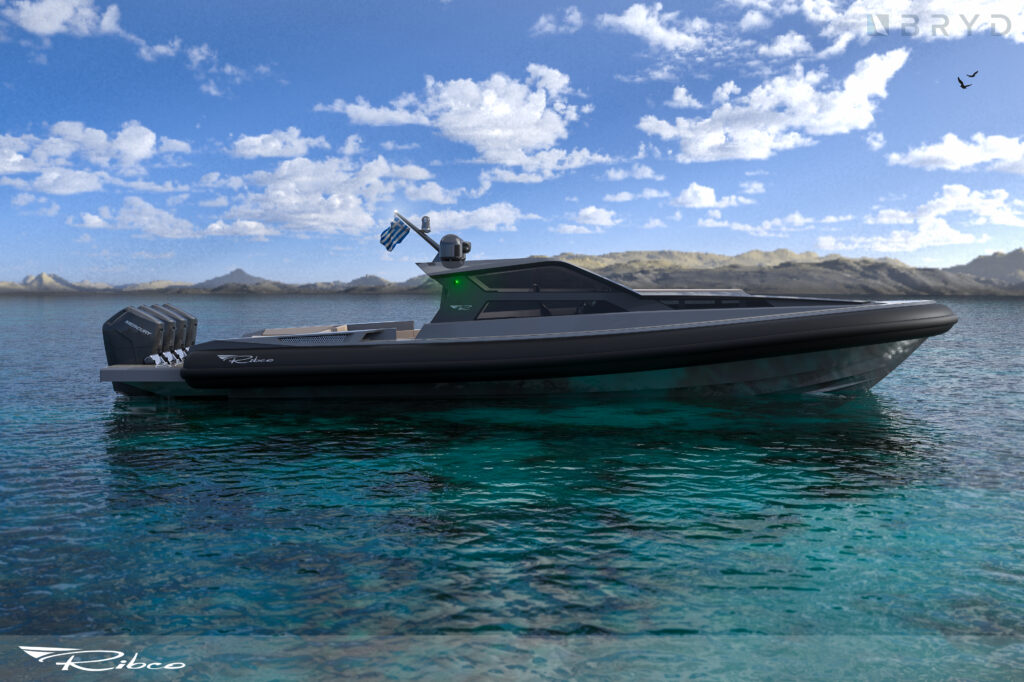

Profile

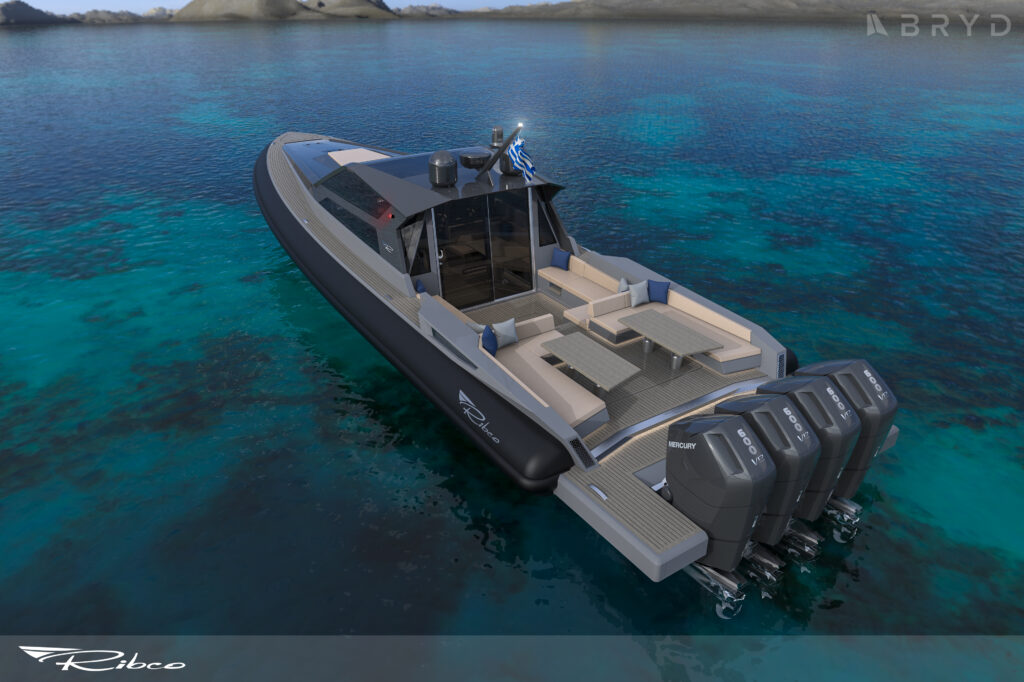

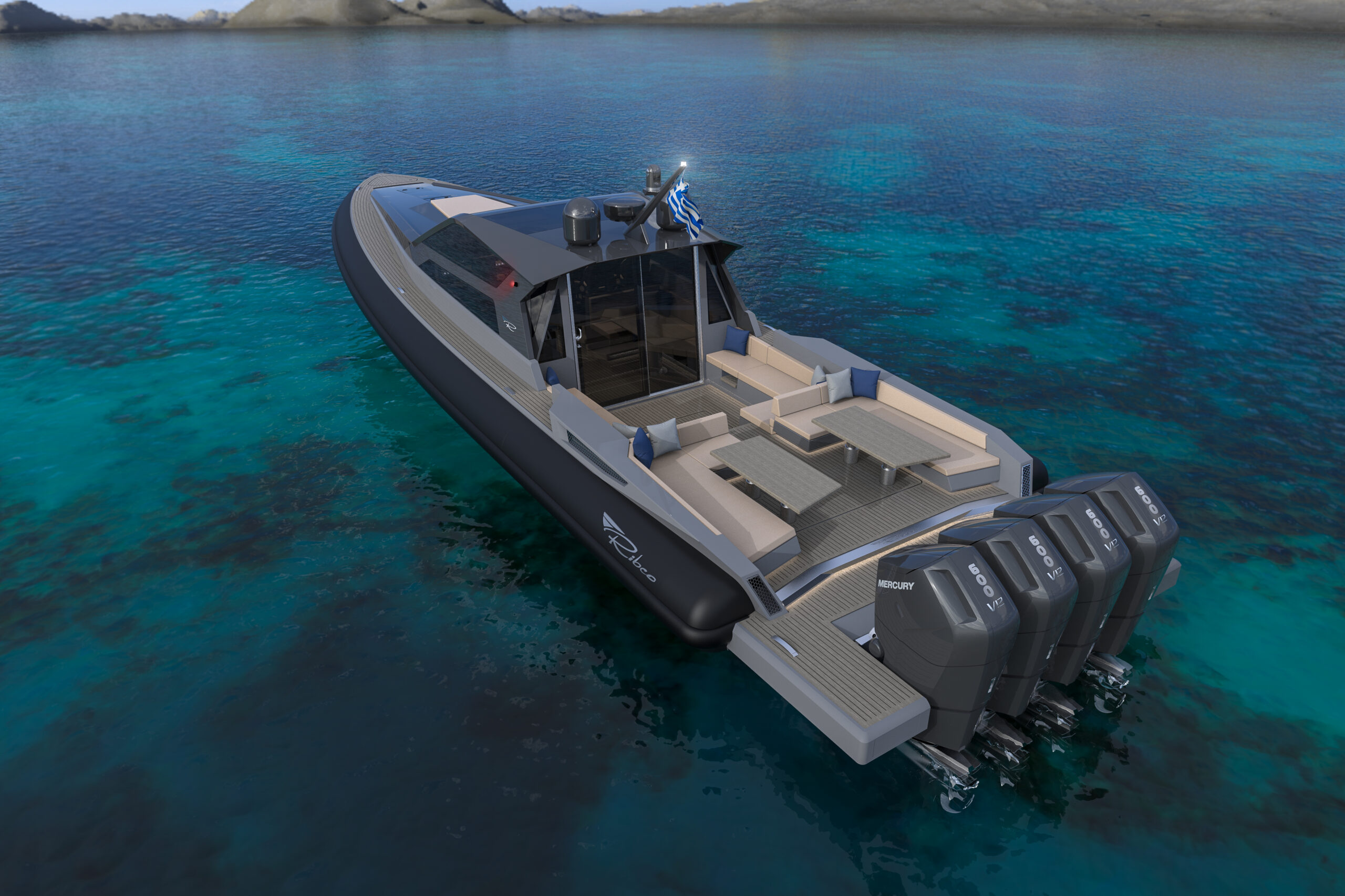

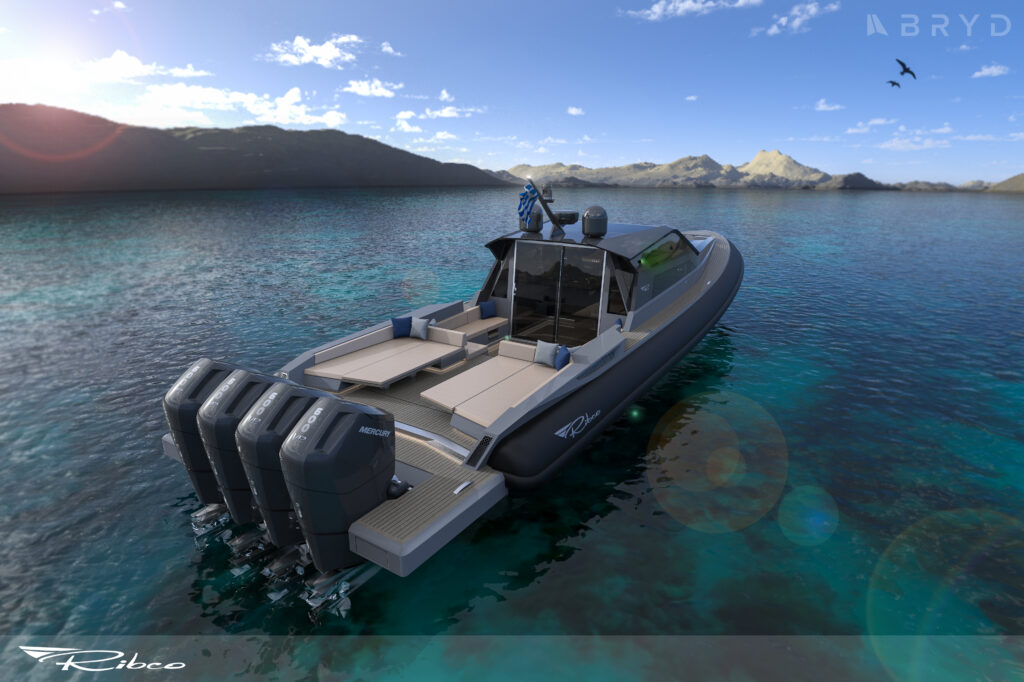

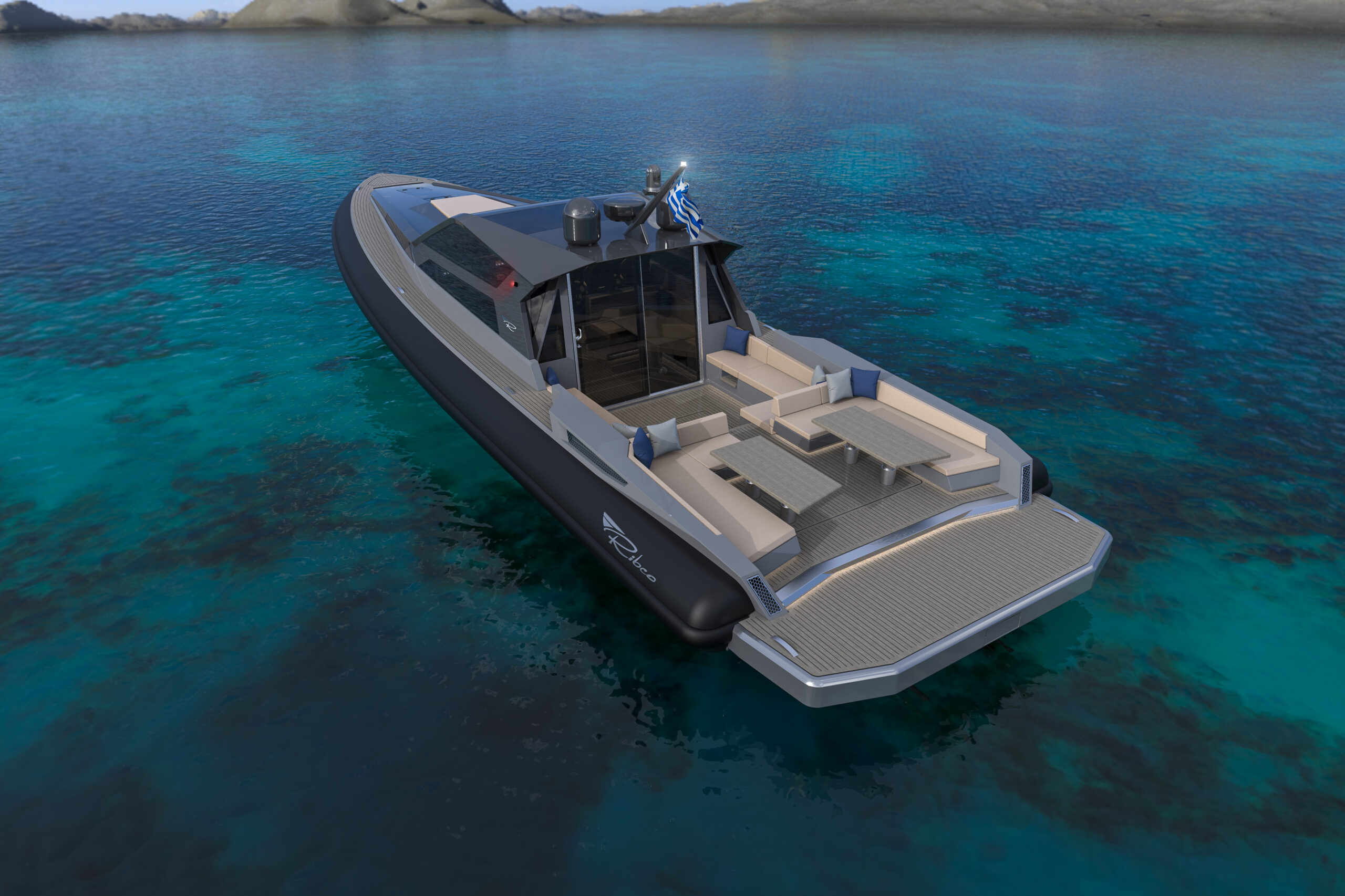

Aft Perspective A
Aft Perspective B

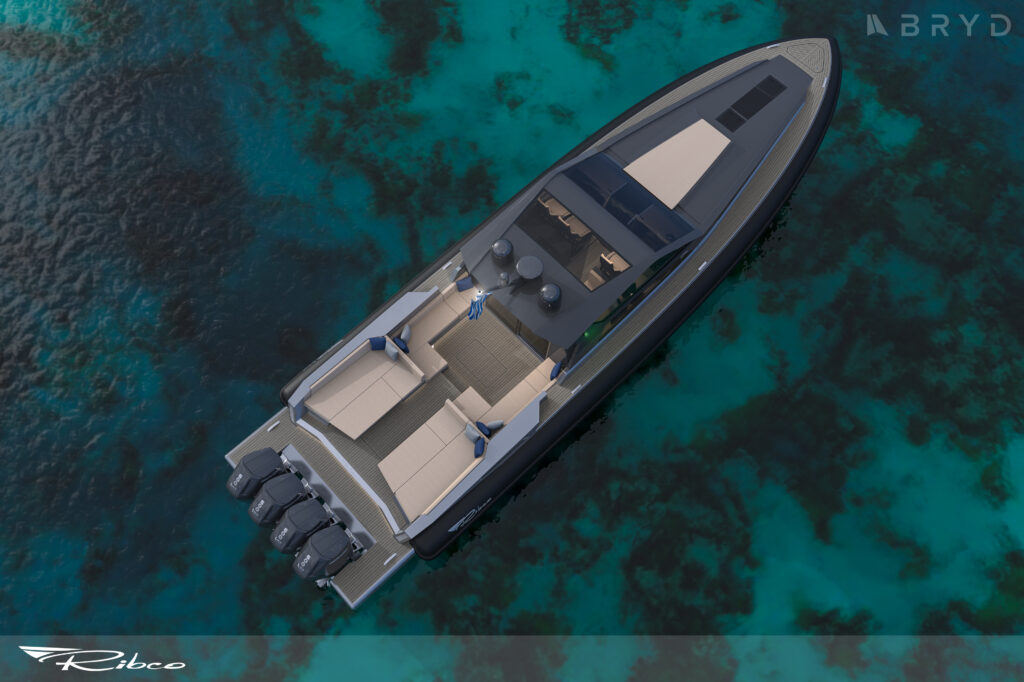

Top View
Deck Saloon 01 A

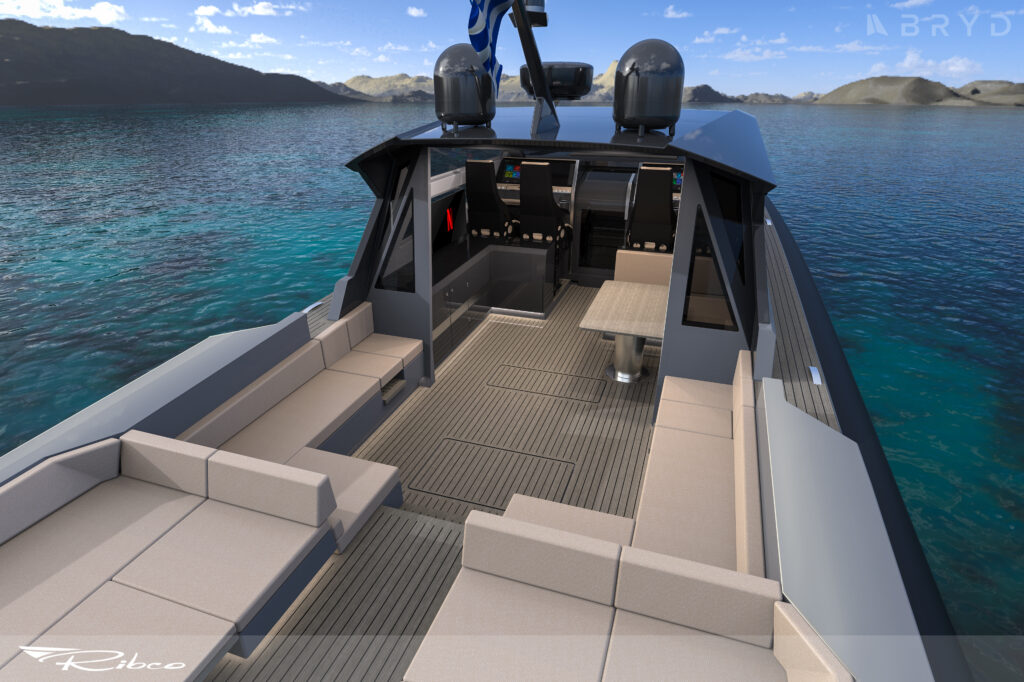

Deck Saloon 02

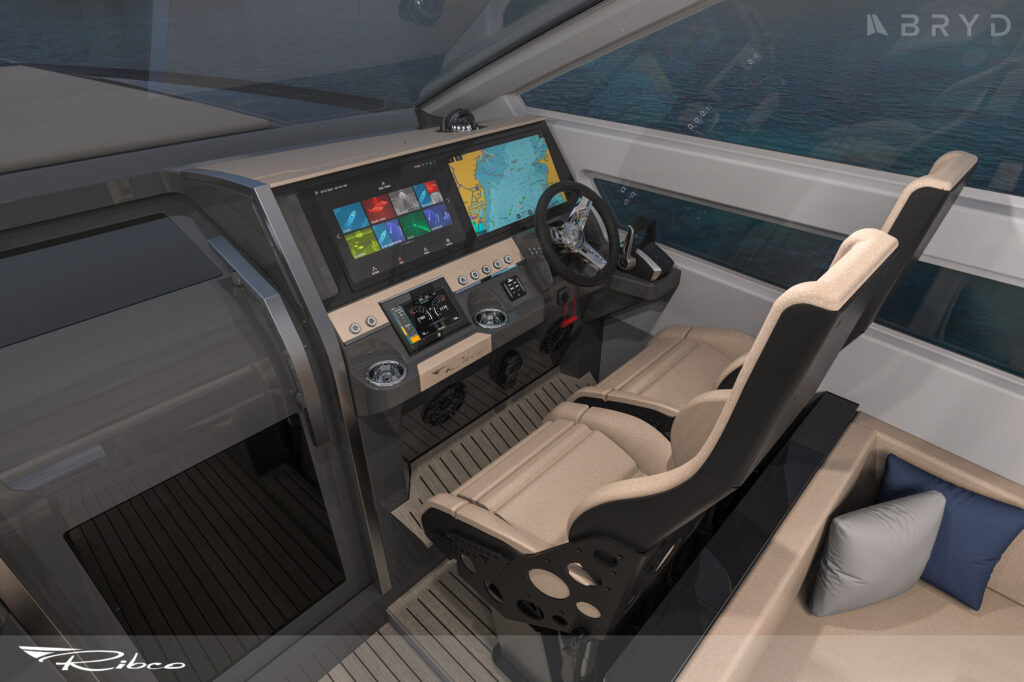

Helm 01

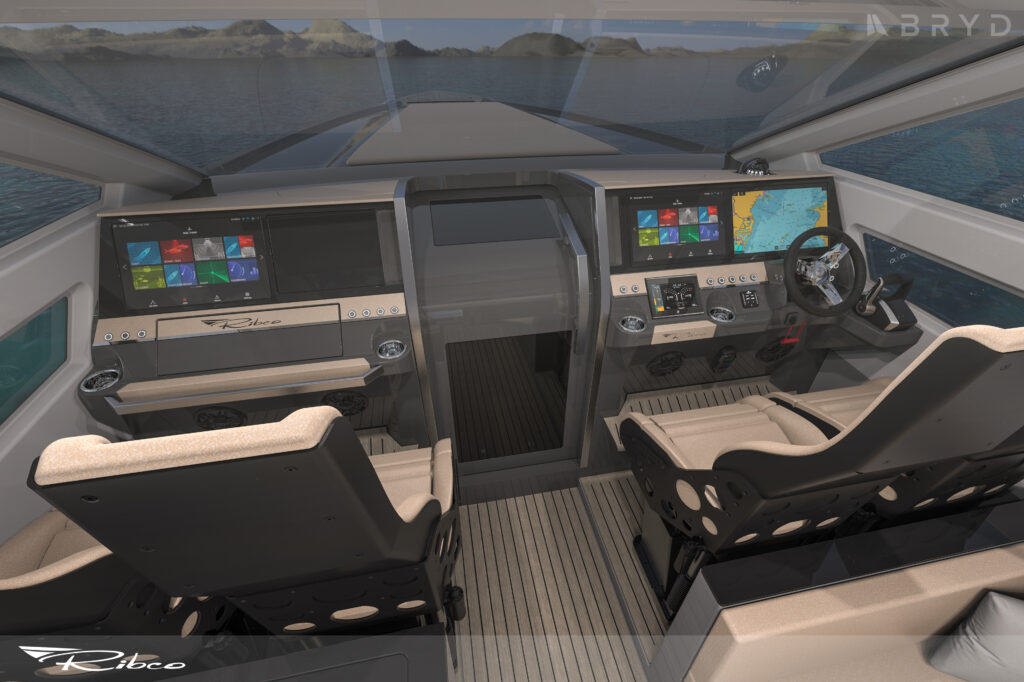

Helm 02
Cockpit 01
Cockpit 02

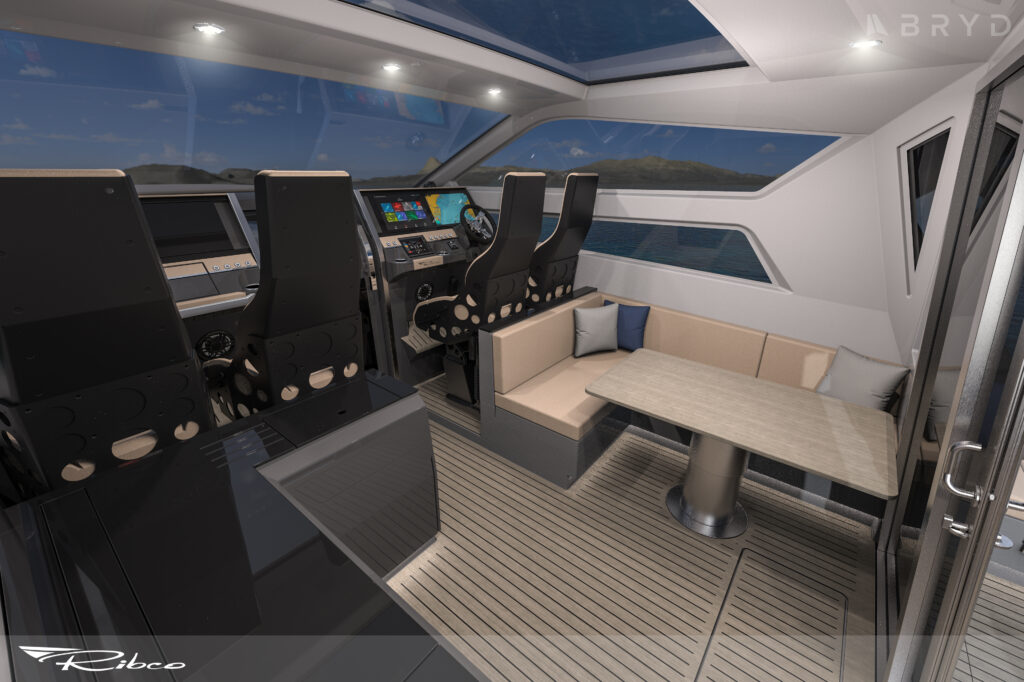

Cockpit 03

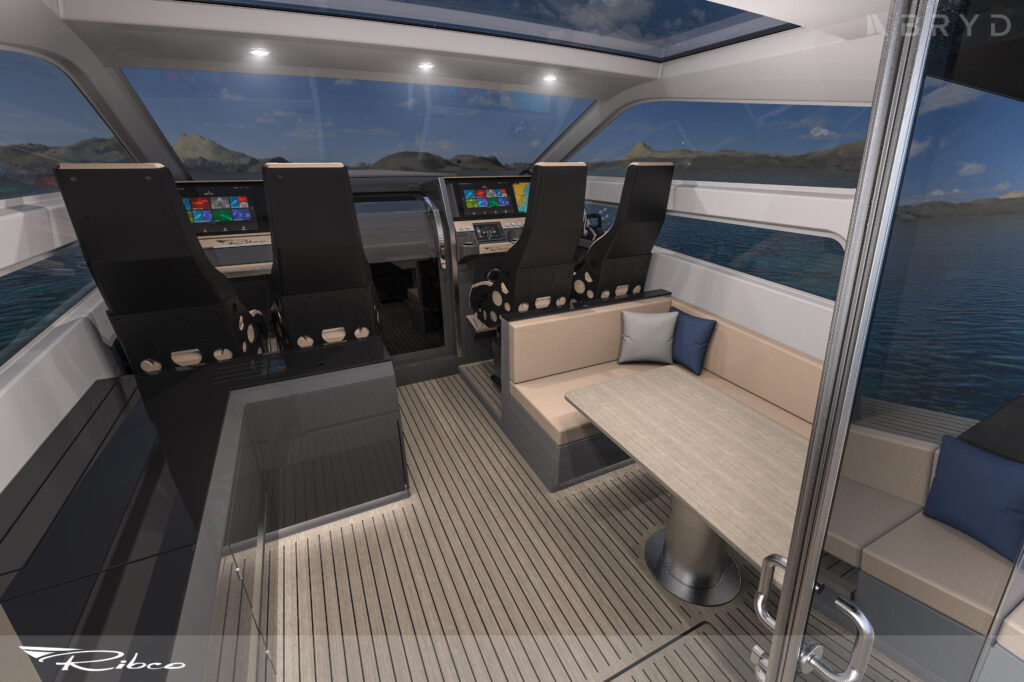

Cockpit 04

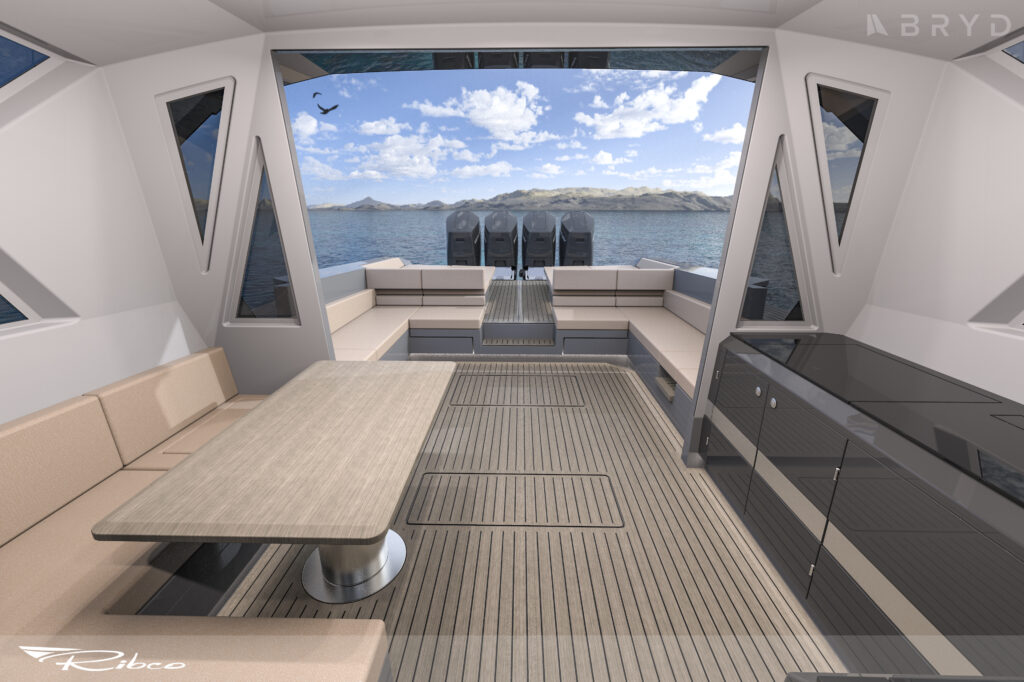

Cockpit 05

Interior

The design of the yacht offers a luxurious feel, with space to enjoy a drink on the aft deck with dinner, or want to relax in the enclosed saloon on the large corner seating with a movie.

Storage is in abundance, with under sofa storage throughout the yacht and space in the galley for all stores and provisions. Stylish sliding doors separate the aft deck to the cockpit where a saloon, galley and helming station are positioned.

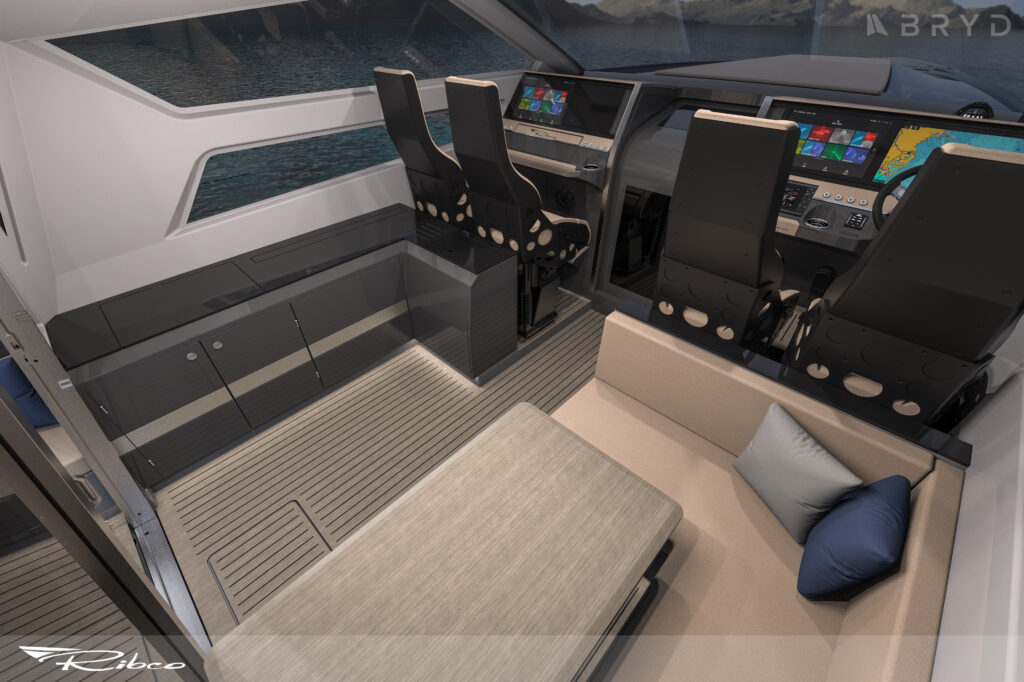

The helm station supports an ergonomically optimised contemporary design, with comfort and control at the forefront of the concept, incorporating four Ullman Atlantic shock-absorbing seats and folding bolster high levels of comfort in extreme sea conditions or at speed. The helm and navigation seats position you directly in front of the three 19’ Raymarine navigation and media control screens and Mercury Vessel View display. The technical features continue with the Mercury Dual-Handle Digital Throttle and Shift System also included on the RSY53.

The high-quality interior continues down below, with two double cabins and a striking skylight featured in the master bedroom. with two convertible day beds too; one converted from the downstairs saloon table and one situated in the cockpit. Downstairs includes another smaller galley with a sink and fridge for ease of use.

interior circles
interior circles2
interior circles3
interior circles4
interior circles5

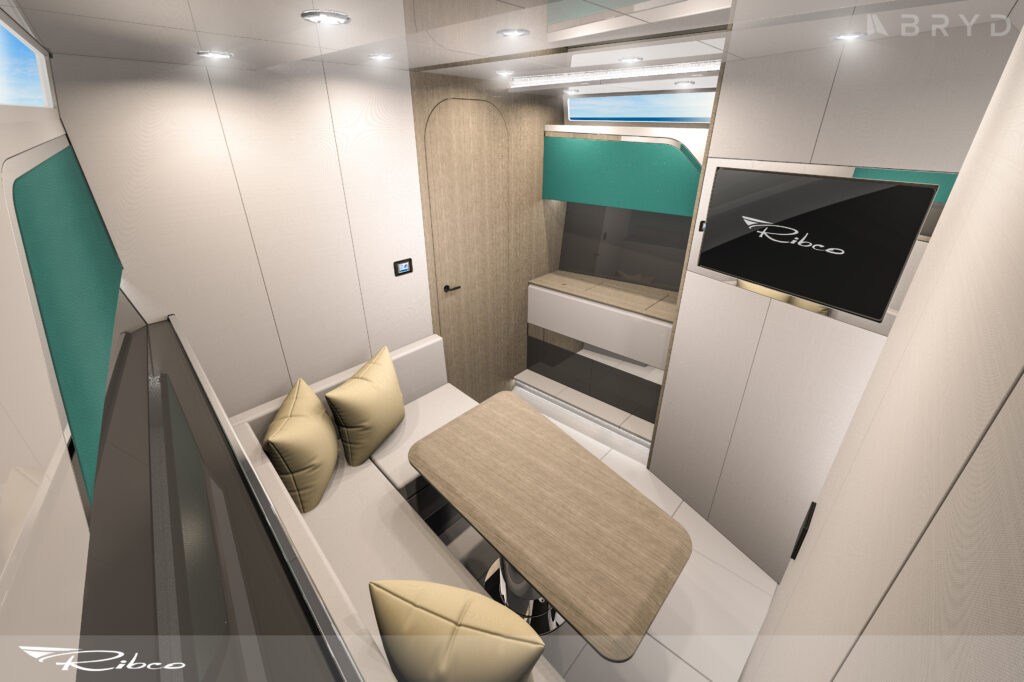

Saloon 01

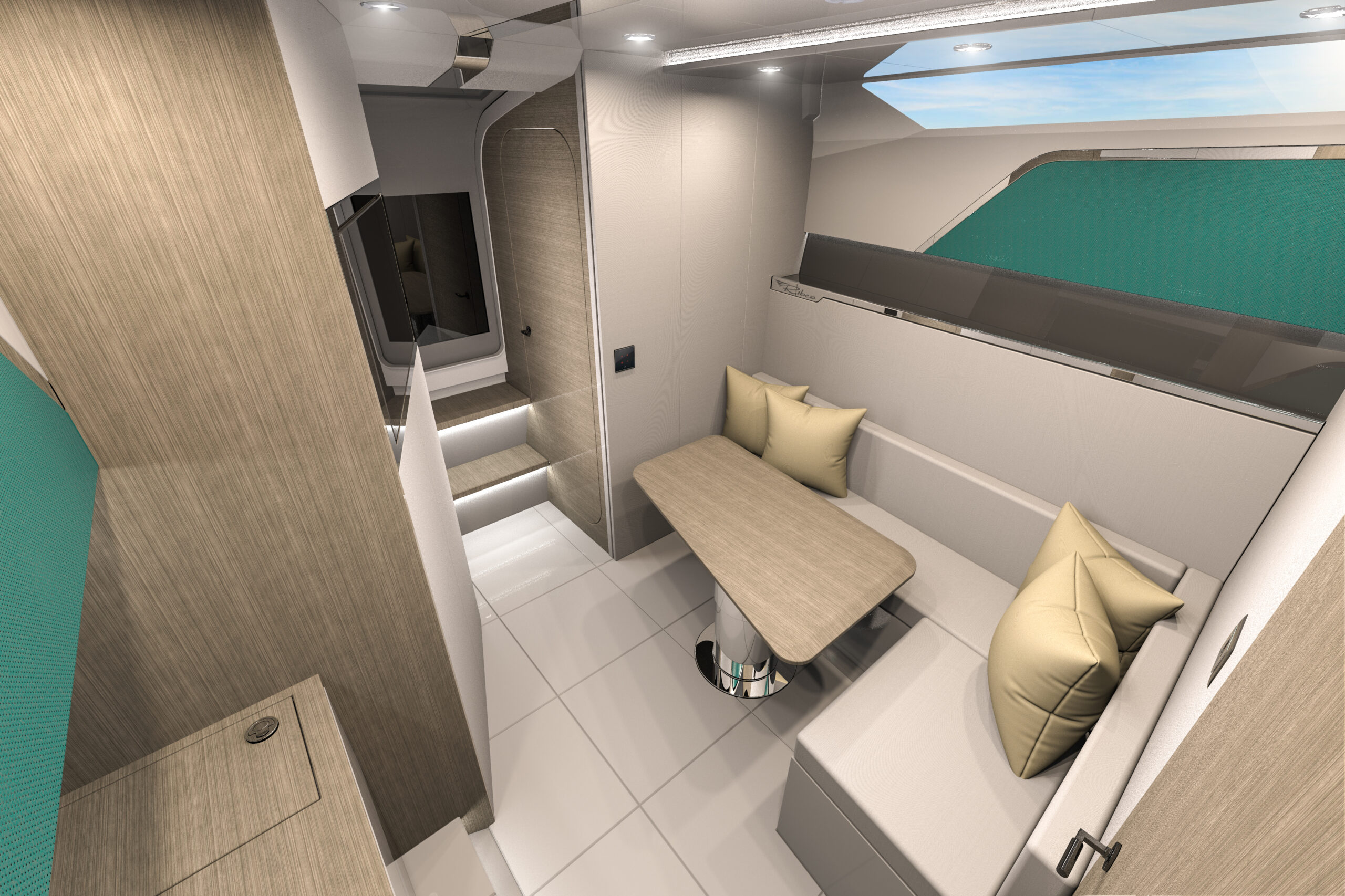

Saloon 03

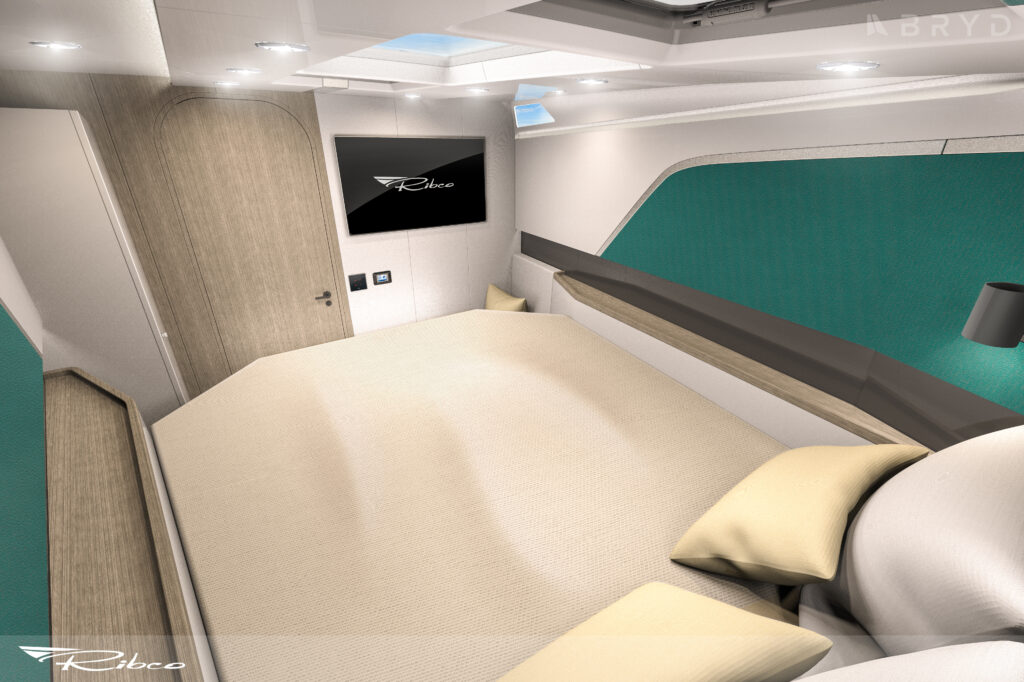

Master Cabin 01

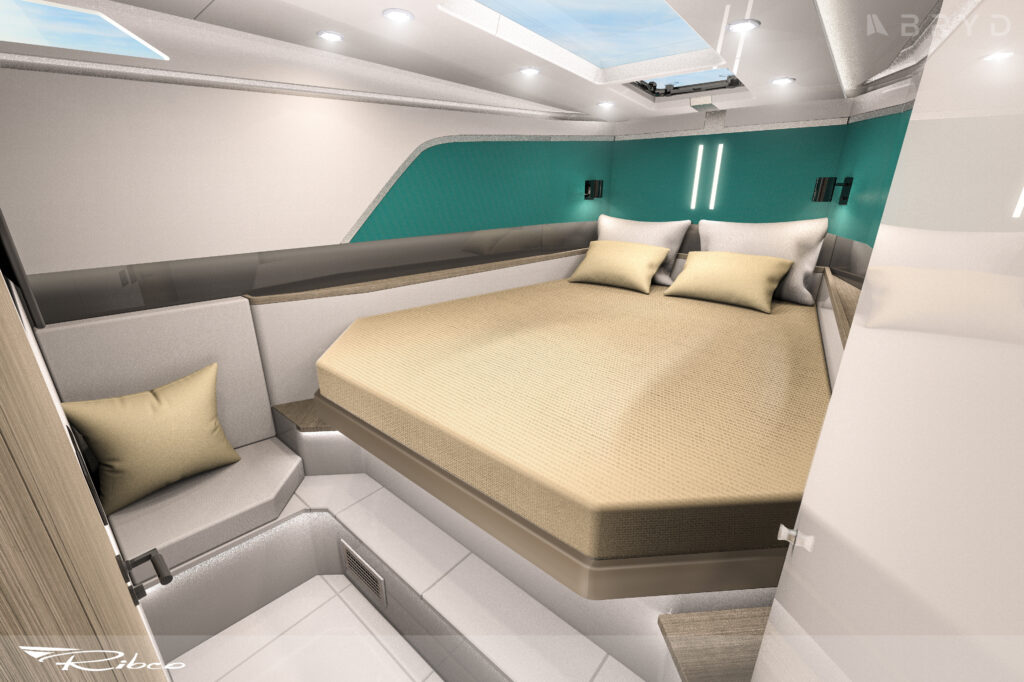

Master Cabin 02
Master Cabin 03

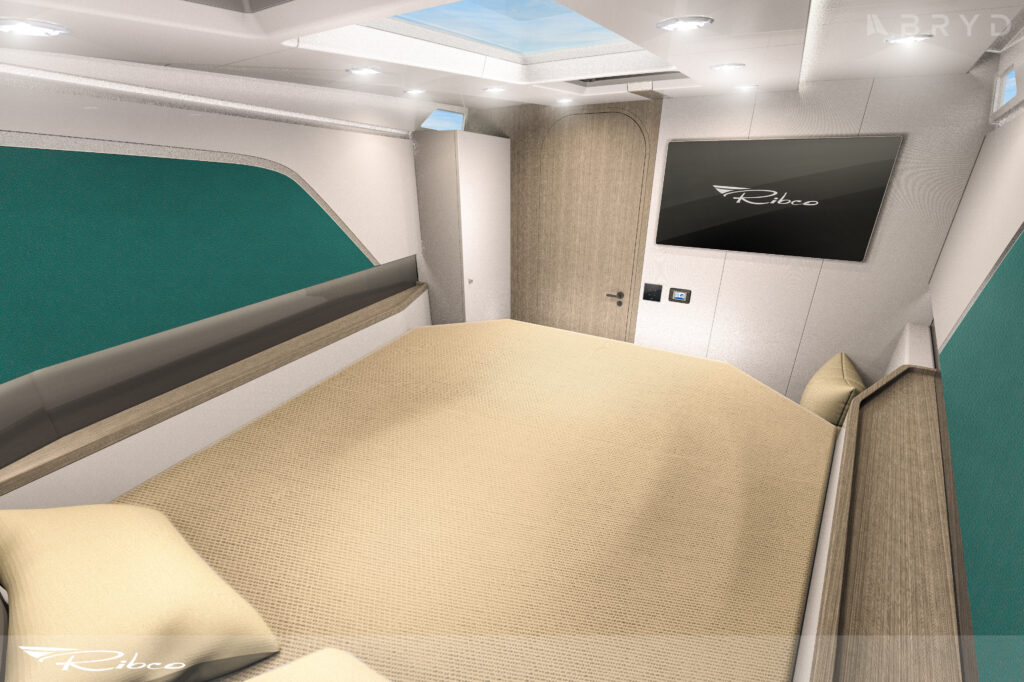

Master Cabin 04
Guest Cabin 01
Guest Cabin 02
Guest Cabin 03
Guest Cabin 04
Day Head 01

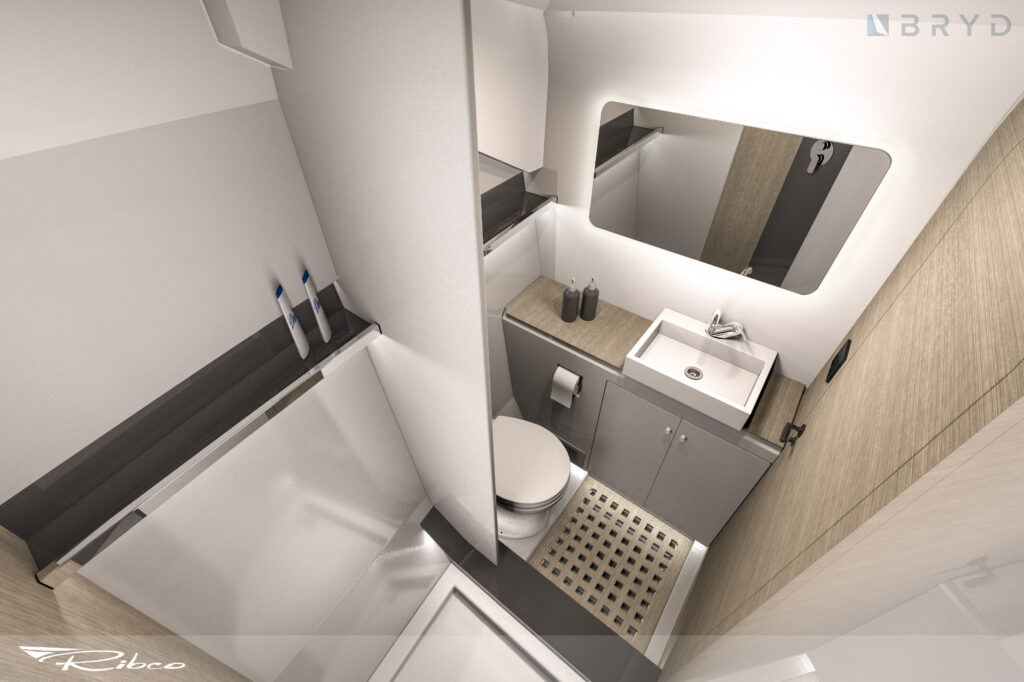

Day Head 02
Day Head 03

Vital Statistics

Key Statistics

LOA

BOA

Lightship Weight

General Statistics

LOA: 16.2m

BOA: 4.87m

Weight (Lightship): 13,000kg

Weight (Max Load): 16,500kg

Max Persons: 12

Power (Outboard): 4x 600hp

Power (Sterndrive): 2x 725hp

Fuel Capacity: 2000L

Fresh Water: 410L

Grey Water: 180L

Black Water: 90L

General Features

Main Deck

4x Ullman Atlantic fold up suspension seats

Main saloon galley/entertainment area

Aft seating area with sunpads

Forward sunpad area



Lower Deck

2x double cabins

Saloon area

Day head

Crew cabin (Outboard)

Full AC & heating system

Ribco RSY 53 Construction

Structural engineering

The RSY53 is constructed via Vinyl ester – PVC core infusion processes with Structural scantlings that have been developed in compliance with Lloyd special service craft regulations G2A as well as ISO 12215 -2019 under cat A ensuring a robust ocean-capable craft.

Critically loaded areas have been developed utilising comprehensive tools including Composide design software and drawing on industry-leading expertise in design and evaluation.

The results is a robust yet lightweight craft, capable of the demands required of this high performance craft.

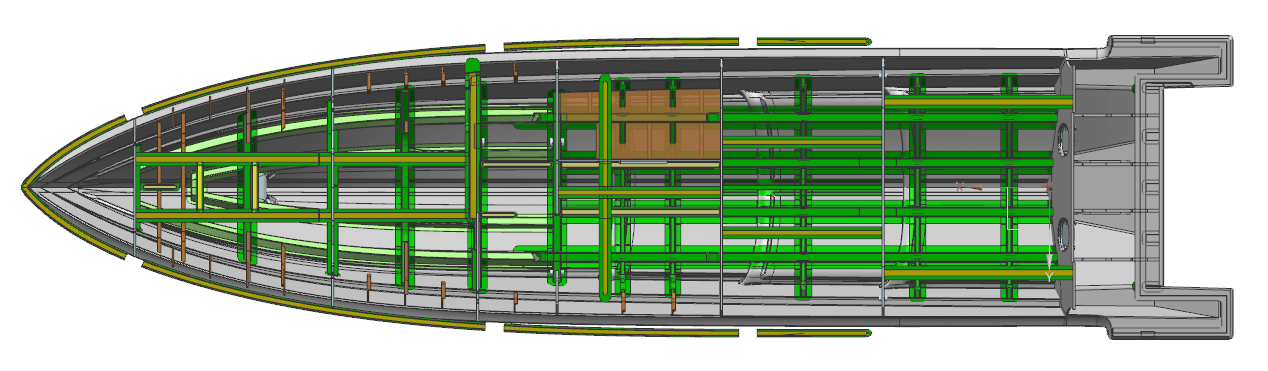

Outboard Structure

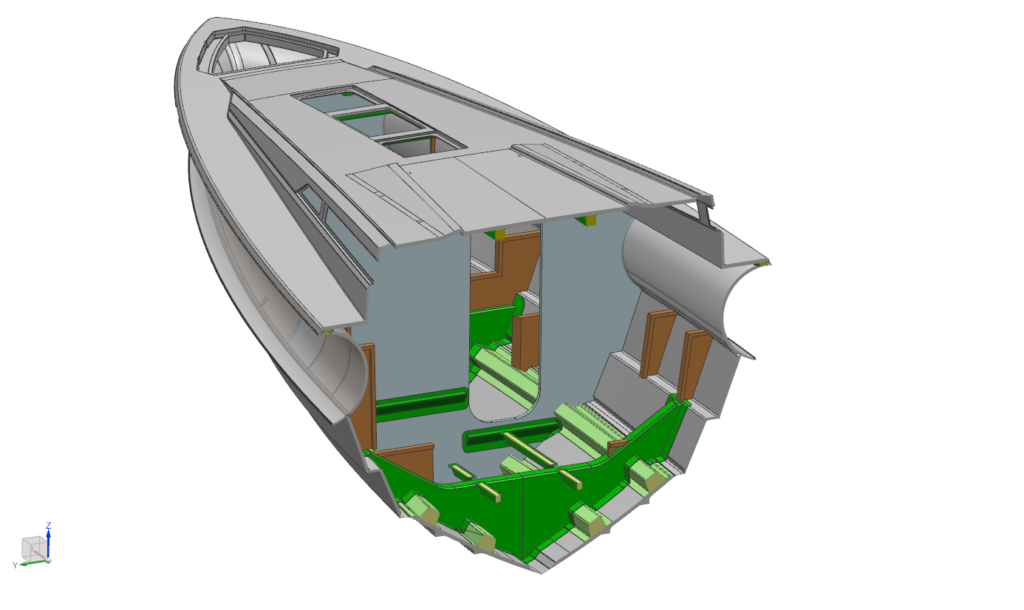

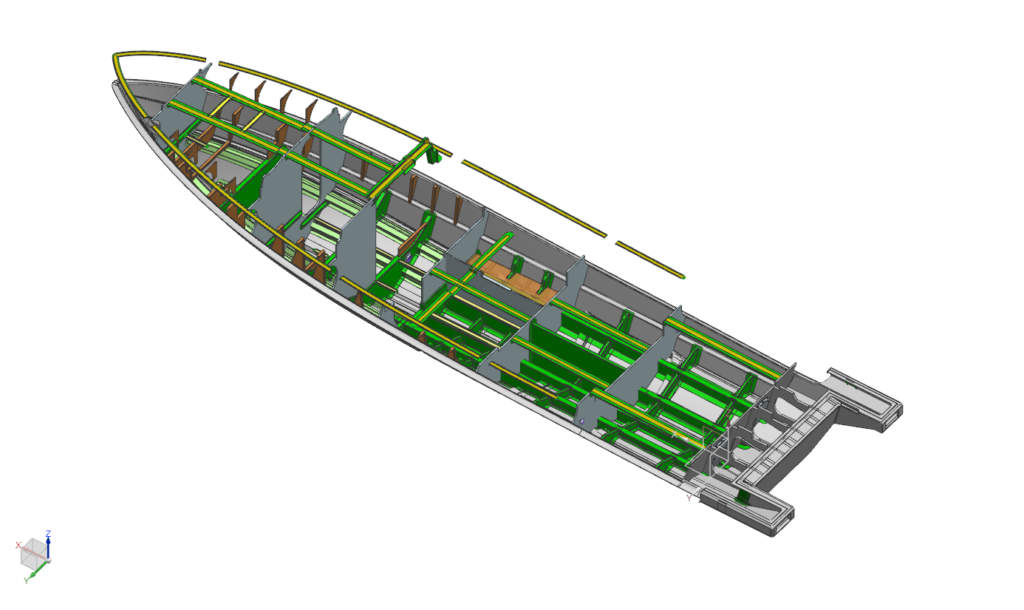

Structure Section

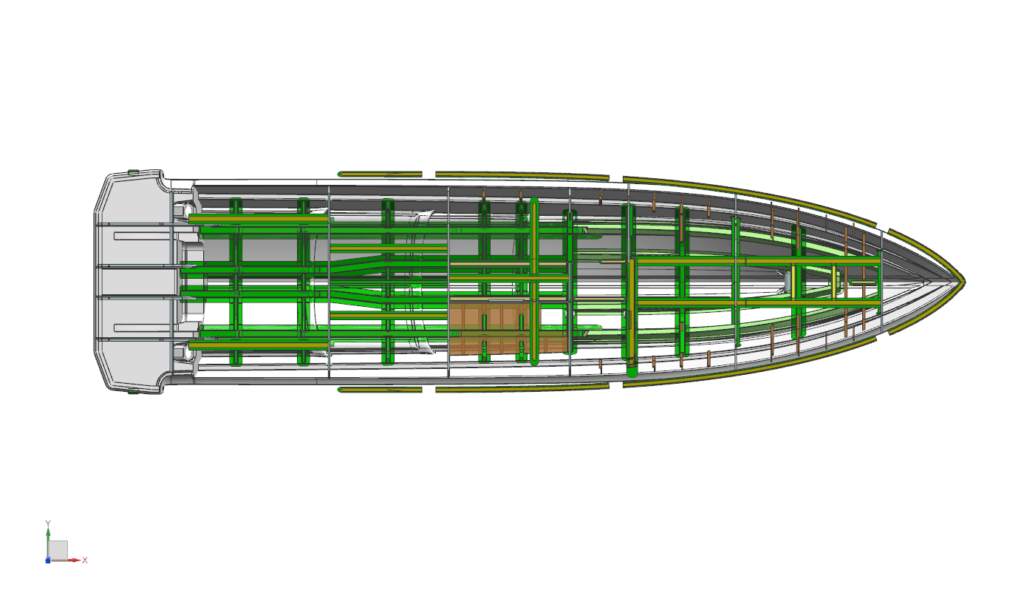

Sterndrive Structure 01

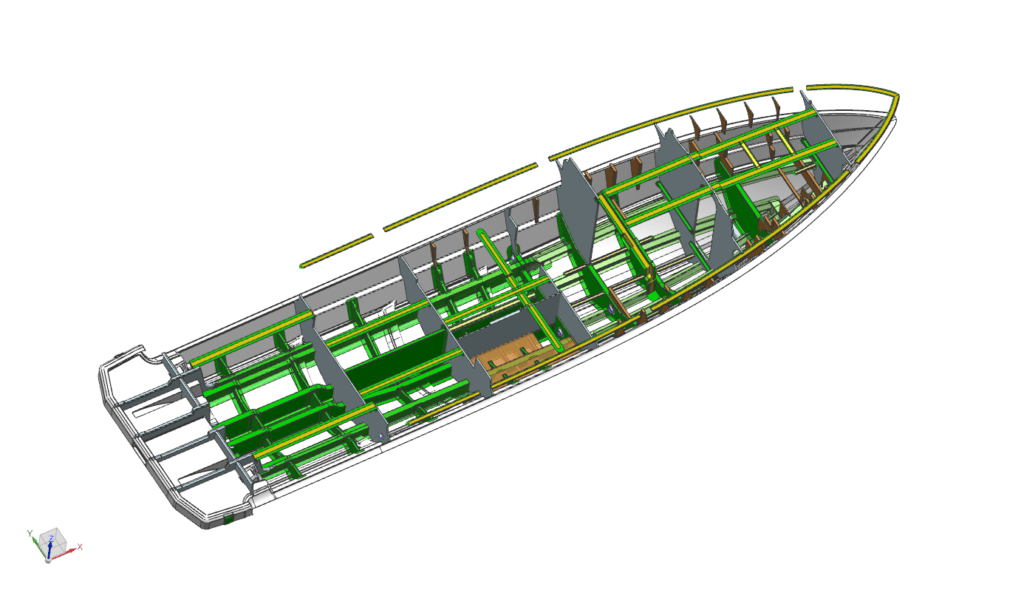

Sterndrive Structure 02

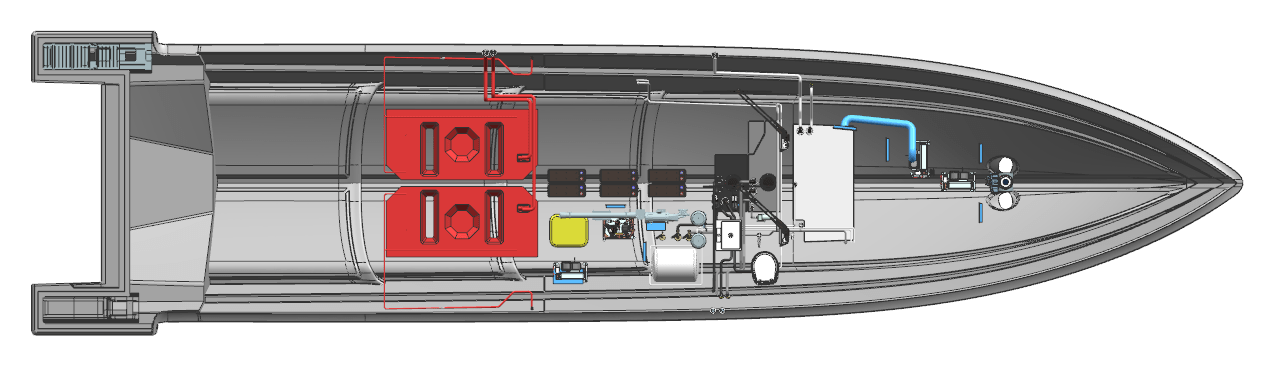

Systems Design

The system design on the RSY53 again portrays the high level of detail we put into our design. The RSY53 systems include:

  • Mechanical Drive Systems (Outboard or Inboard Engine & Shaft)
  • Fuel Systems
  • Fresh Water Systems
  • Grey Water Systems
  • Black Water Systems
  • Deck Systems
  • Airconditioning Systems
  • Electrical Systems

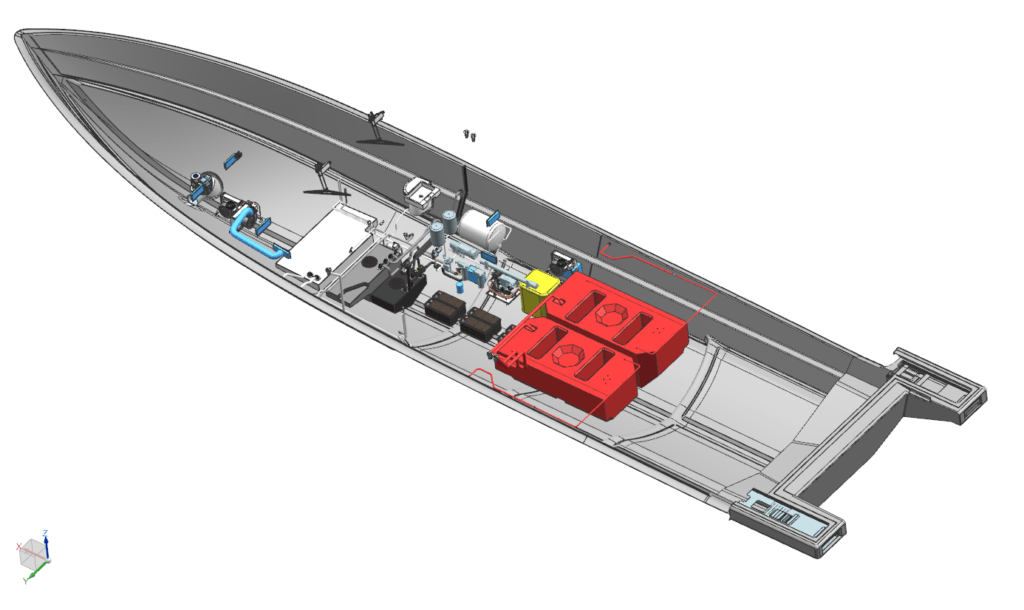

Systems Design 01

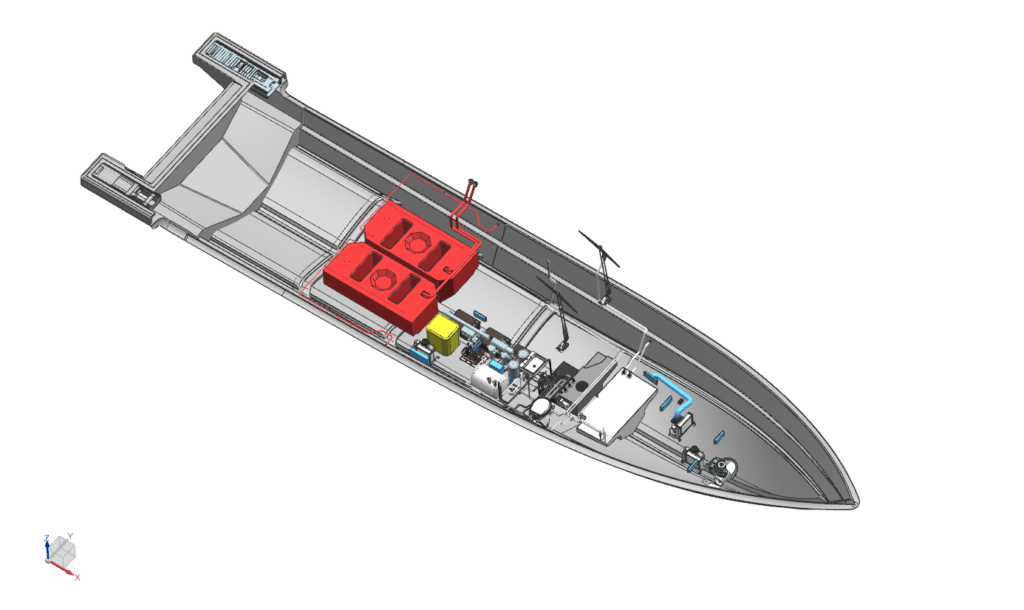

Systems Design 02

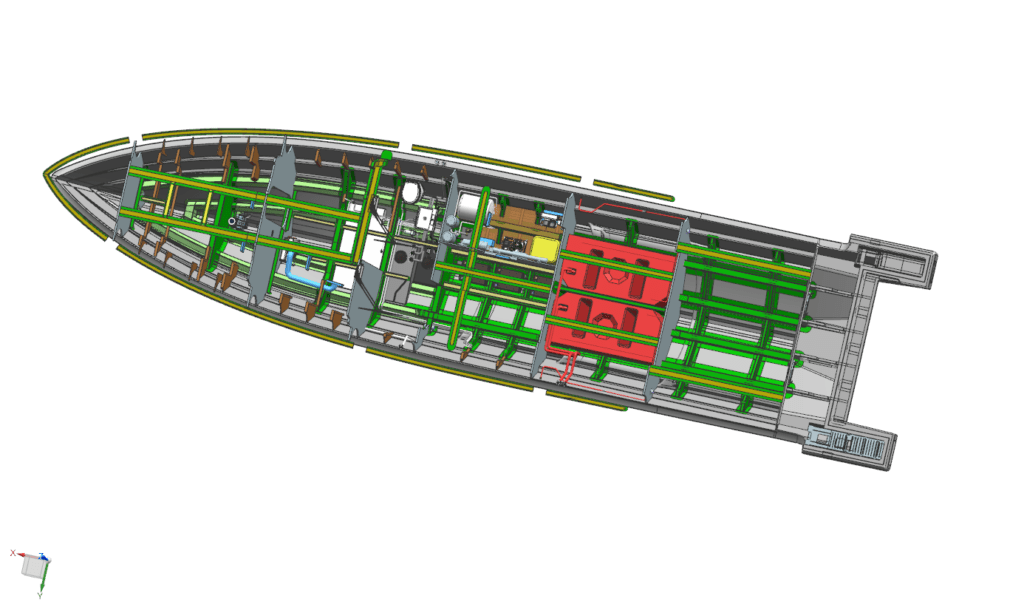

Systems Design 03
