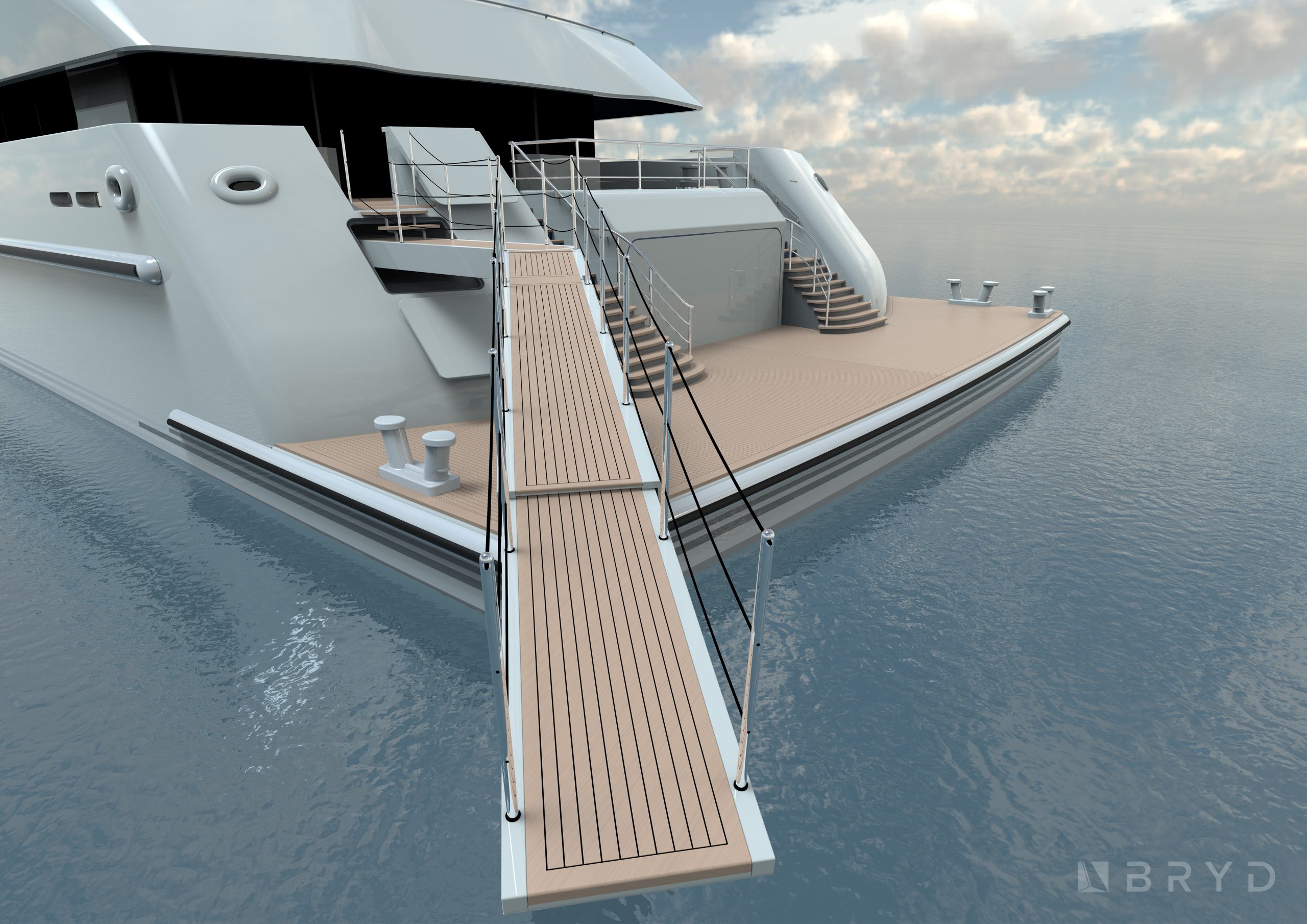

Internal yacht space is at a premium within the modern Superyacht, therefore BRYD have developed an innovative solution to minimise the stowage envelope of the passerelle whilst maximising total extension.
Project overview
TypeFolding telescopic superyacht passerelle
Total length11.2 m (4.5 m past transom)
Stowed envelope6.9 m
Material5083/6082 aluminium construction
Design

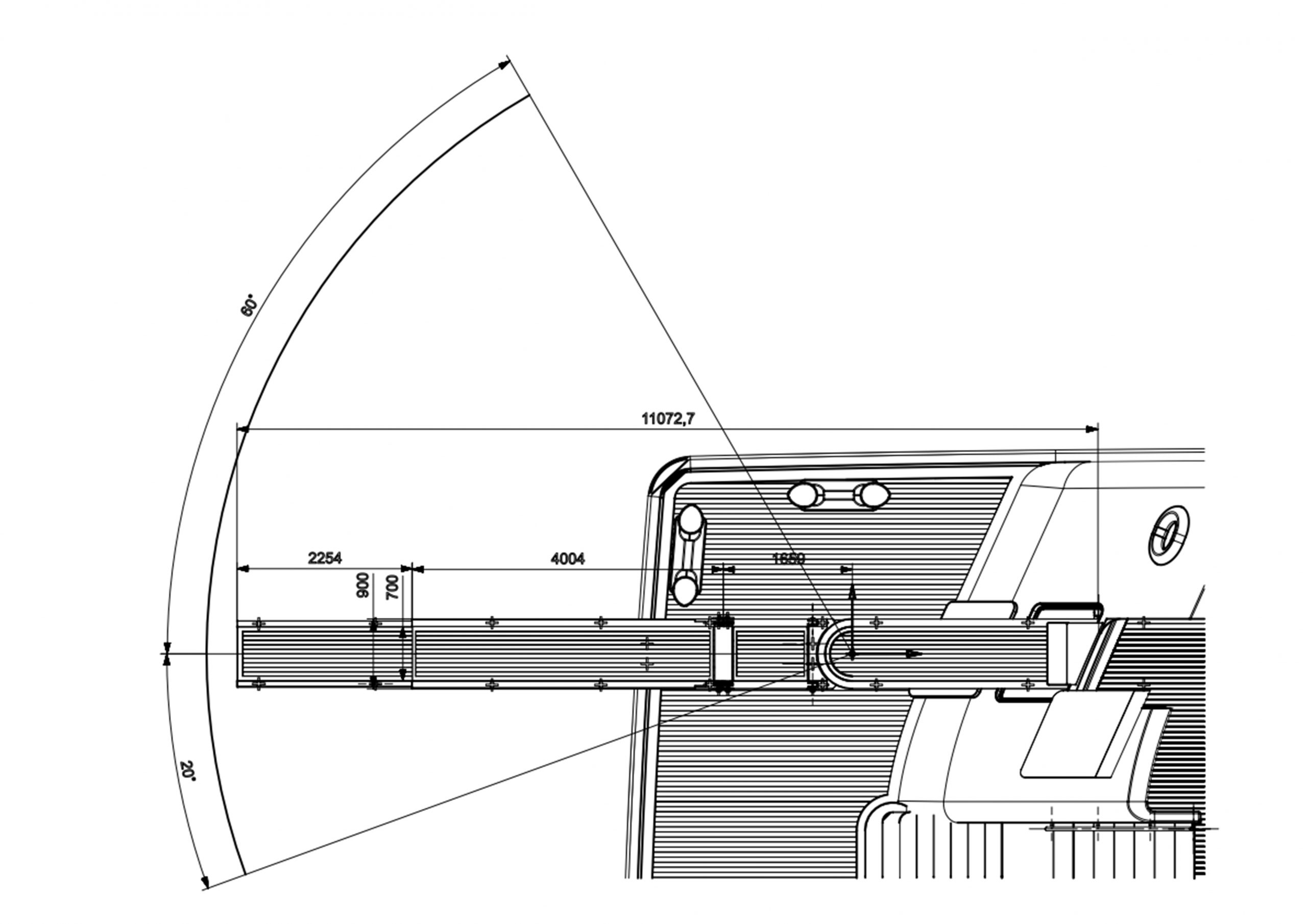

This specific passerelle design enables a total length of 11.2meters (4.5m past transom) stowed within an envelope of 6.9meters. Options also include telescopic pantograph which steps in place of the telescopic section for specialist applications.
Key Features
5083/6082 Construction6x custom stainless steel ramsStainless steel stanchionsUnder step lighting90 degree PRT or STB slew2.5 Meter FallFolding and lock MechanismHydraulic fender system
