Folding Telescopic Super Yacht Passerelle
In 2016 BRYD was commissioned to design an Innovative Super Yacht passerelle for a new 70 meter German superyacht builder of aluminium construction. The Passerelle was to conform to at strict loading and deflection criterion.
For further information please don’t hesitate to get in contact:
Design

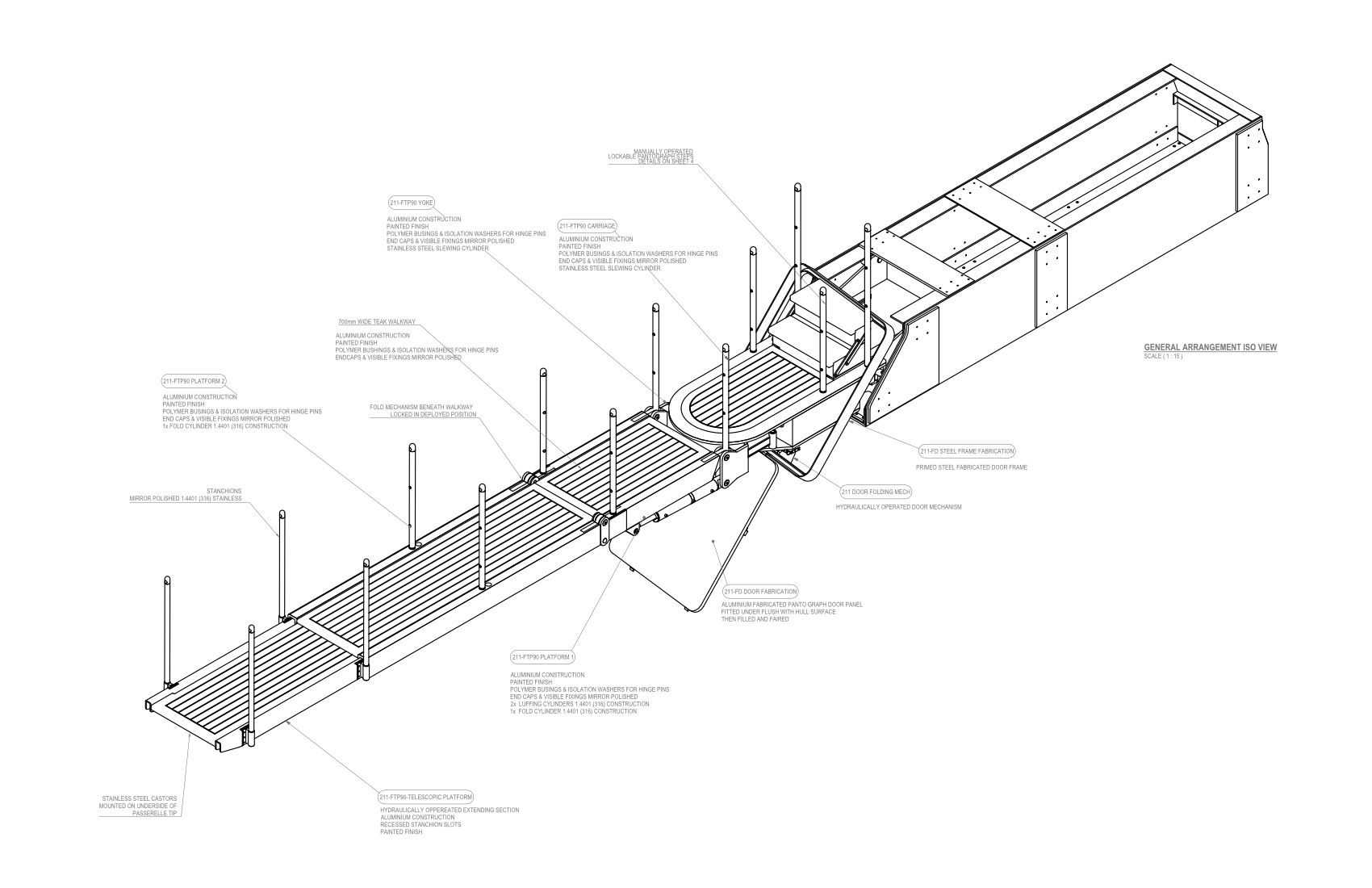

To achieve the design brief of 7 meter extension and 60 degree slew with little available space within the yacht, an innovative solution was required. Subsequently an option supporting a mid fold mechanism as well as a telescopic extending end section was put forward to achieve the requirements. For this project BRYD undertook the entire design for the project utilising Autodesk Inventor and Autocad also calling upon specialist CAE tools throughout the design.
In 2017 BRYD invested in Siemens NX software licences Adding large range of additional design capabilities.
Key Features
- 5083/6082 Construction
- 6x custom stainless steel rams
- Stainless steel stanchions
- inset passerelle lighting
- 60 degree port slew
- 15 degree upward luff
- Folding Mechanism
- Telecopic end platform
- Hydraulic travel mechanism
