038 — 8.2m Electric Wooden Day Cruiser

Artis 25

BRYD designed the Artis 25, an 8.2-metre electric day cruiser for Artis Motor Yachts, combining the character of a classic wooden runabout with quiet, zero-emission electric propulsion.

Developed from the first concept sketches through naval architecture, structural design and engineering, the Artis 25 pairs a hand-crafted timber hull with an 80 kW electric drive and a 60 kWh battery system, creating a refined, low-impact boat for coastal cruising and long days on the water.

Classic Form, Modern Purpose

The design draws on the heritage of traditional wooden launches, with a long, low profile, varnished topsides and a sweeping wraparound windscreen.

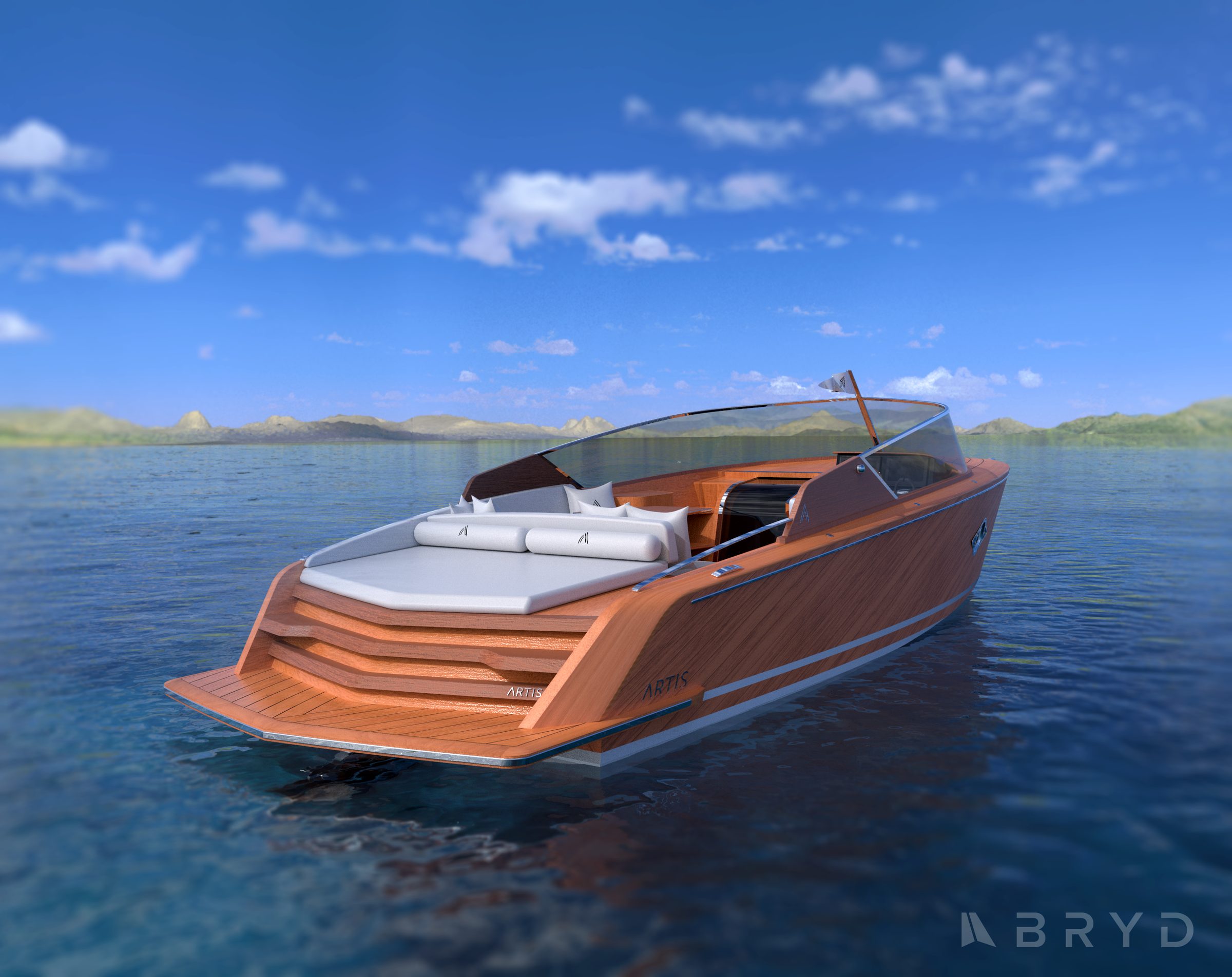

Its layout reflects how owners use their boats today: a sociable cockpit with wraparound seating around the helm, a large aft sun pad above a stepped bathing platform, and a forward cabin with a double berth and separate heads.

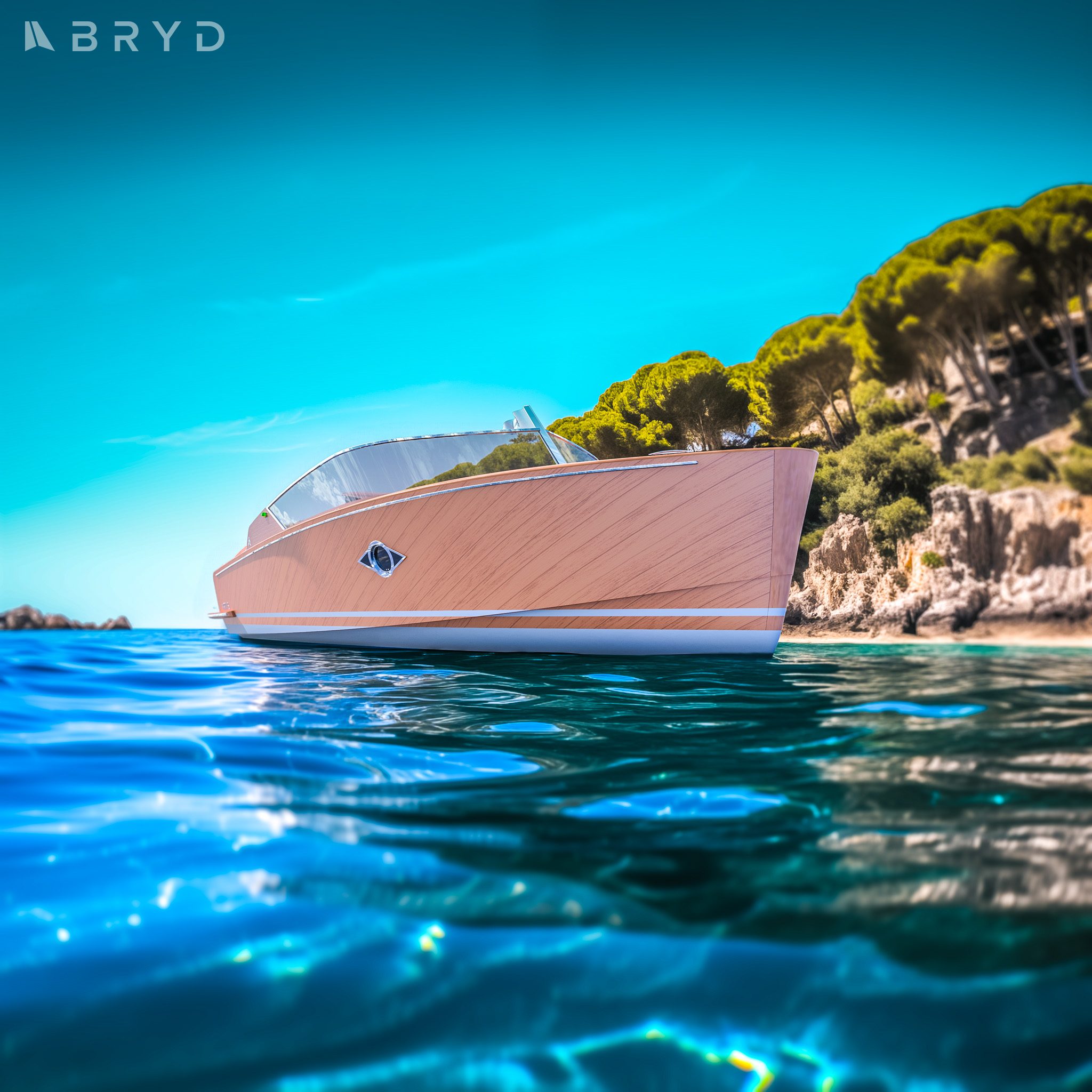

Artis 25 in profile at anchor in a cove
Artis 25 electric wooden day cruiser, bow quarter view

Project overview

ClientArtis Motor Yachts
Vessel8.2m electric wooden day cruiser
Propulsion80 kW electric drive, 60 kWh battery
BRYD roleConcept, naval architecture, structural design & engineering

Design Parameters

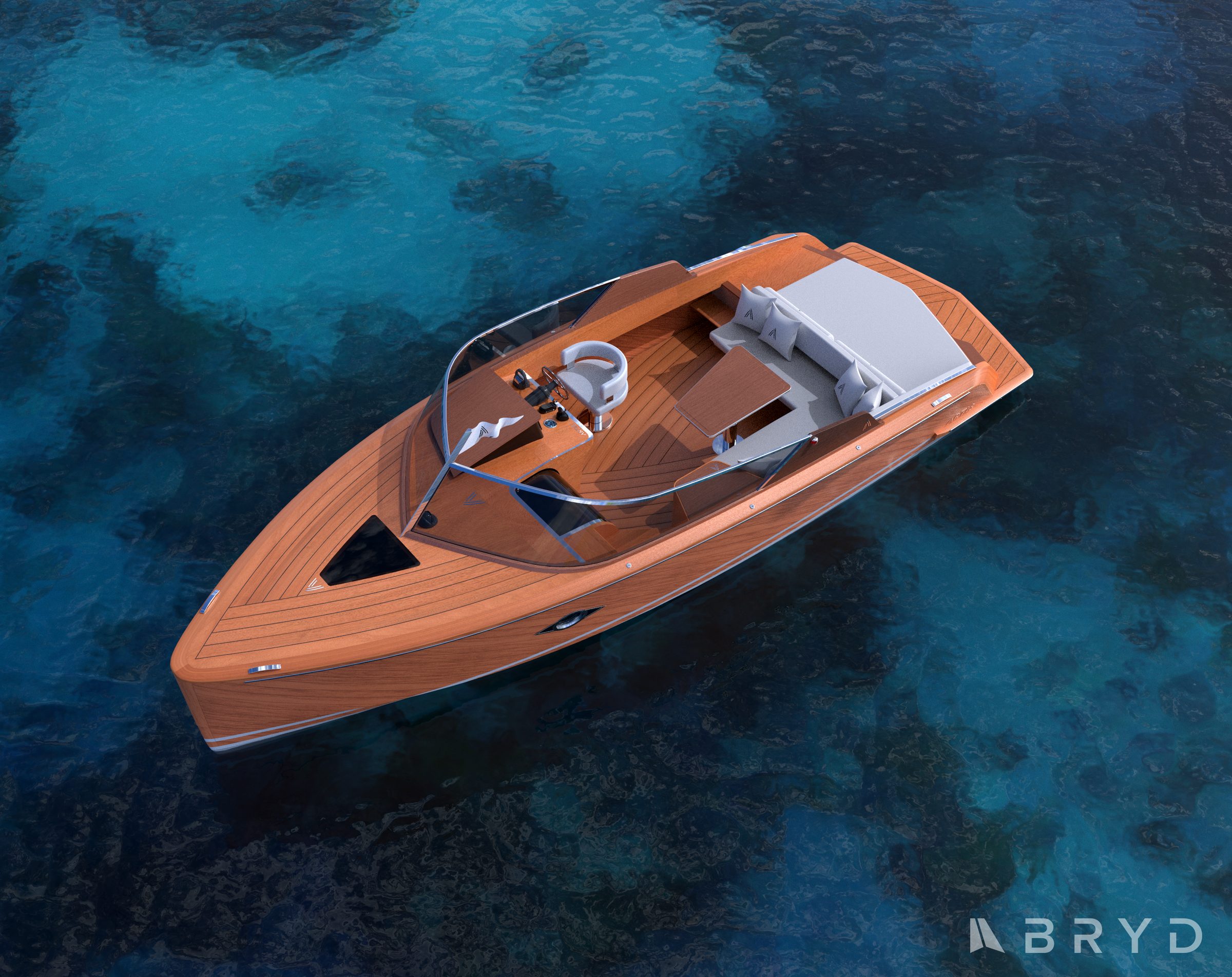

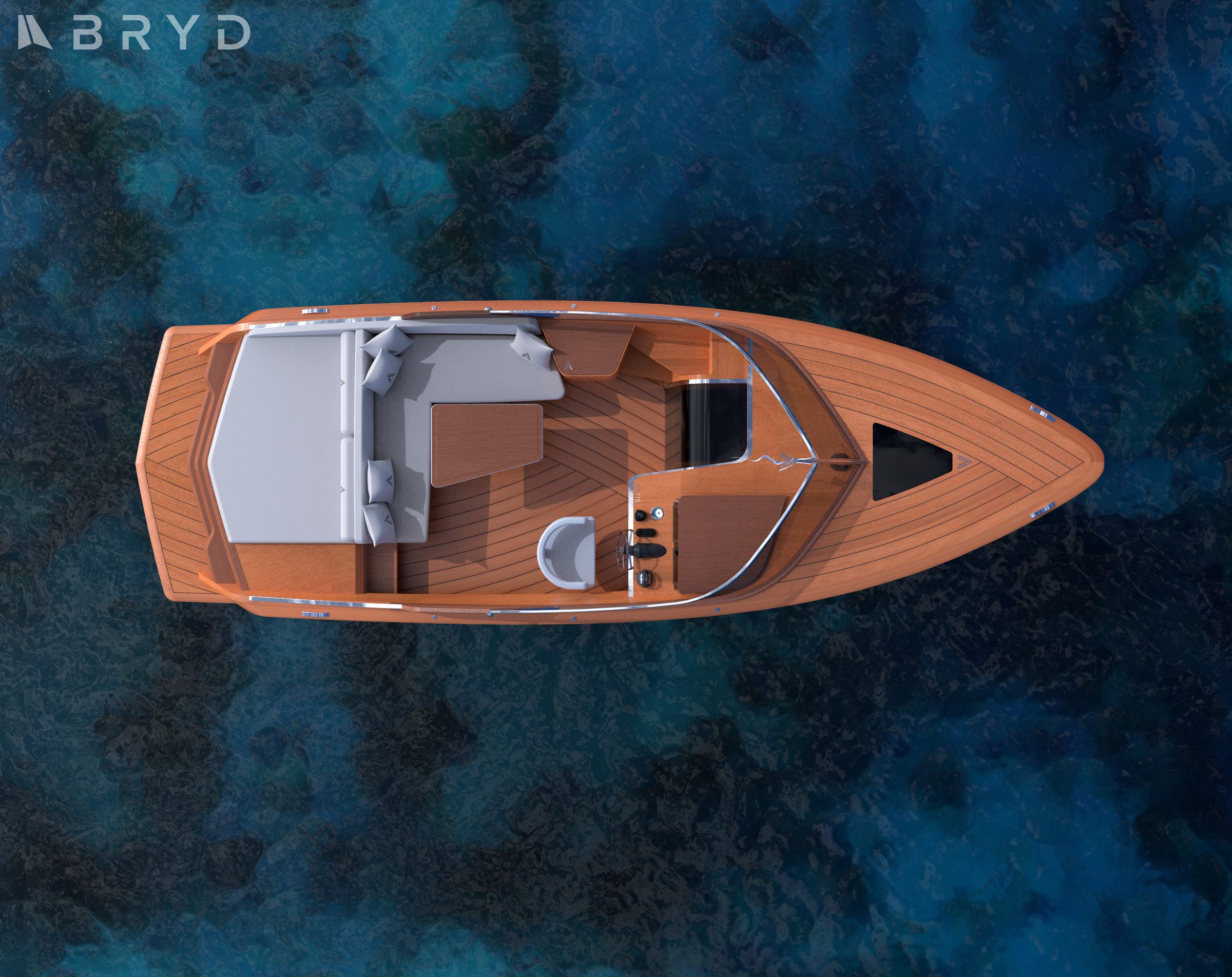

Artis 25 deck layout seen from above

General Statistics

Length (hull)
8.18 m
Length overall
8.26 m
Beam overall
2.69 m
Draught (max)
0.84 m
Light craft mass
2,228 kg
Loaded displacement
3,054 kg
Maximum persons
8
Design category
C (inshore waters)

General Features

Propulsion
80 kW electric drive, stern drive or shaft line
Battery
60 kWh battery system
Cruise
Around 10 knots, approx. 33 nm range
Hull
Cedar strip planking with ±45° chestnut veneers
Accommodation

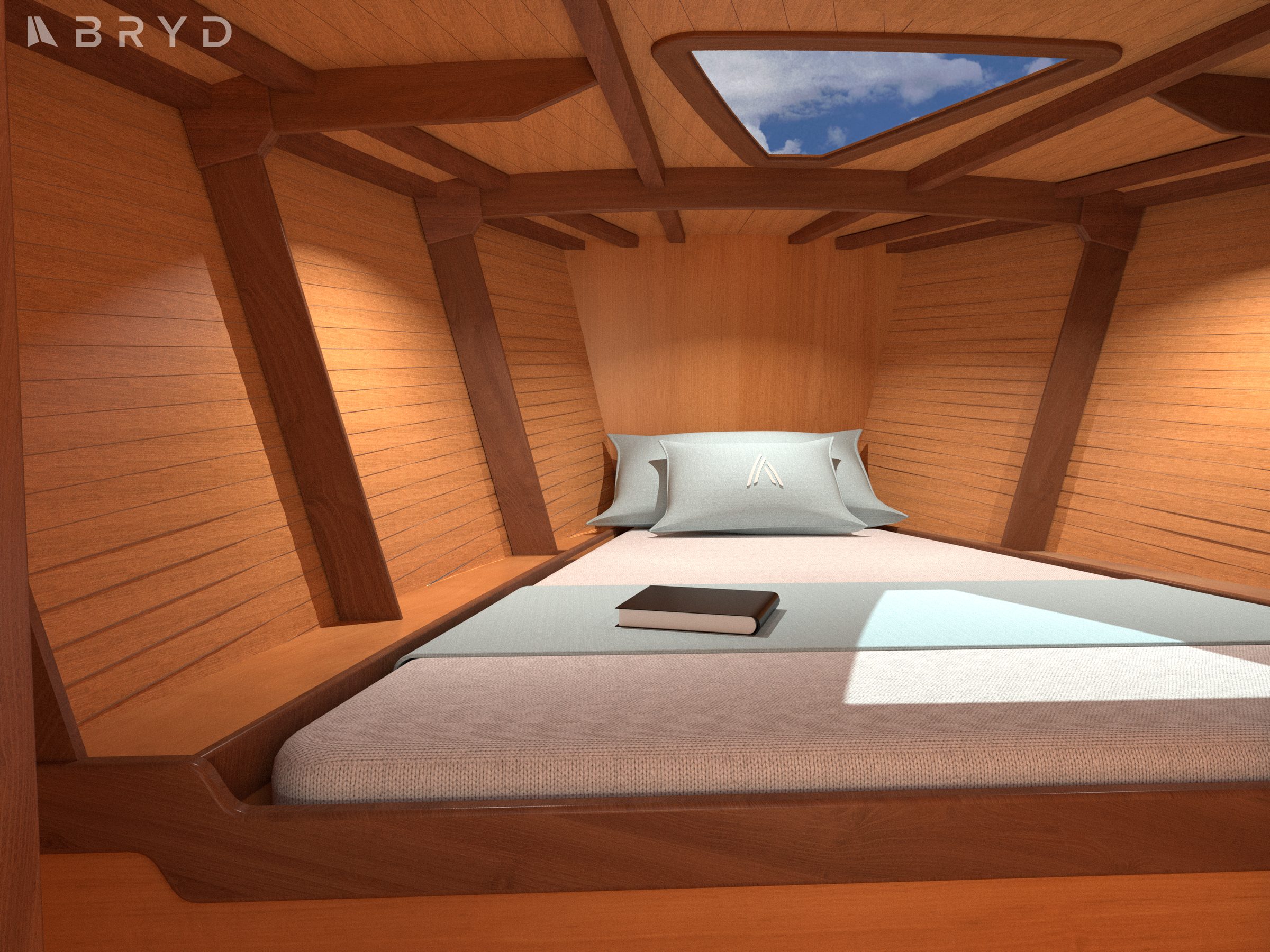

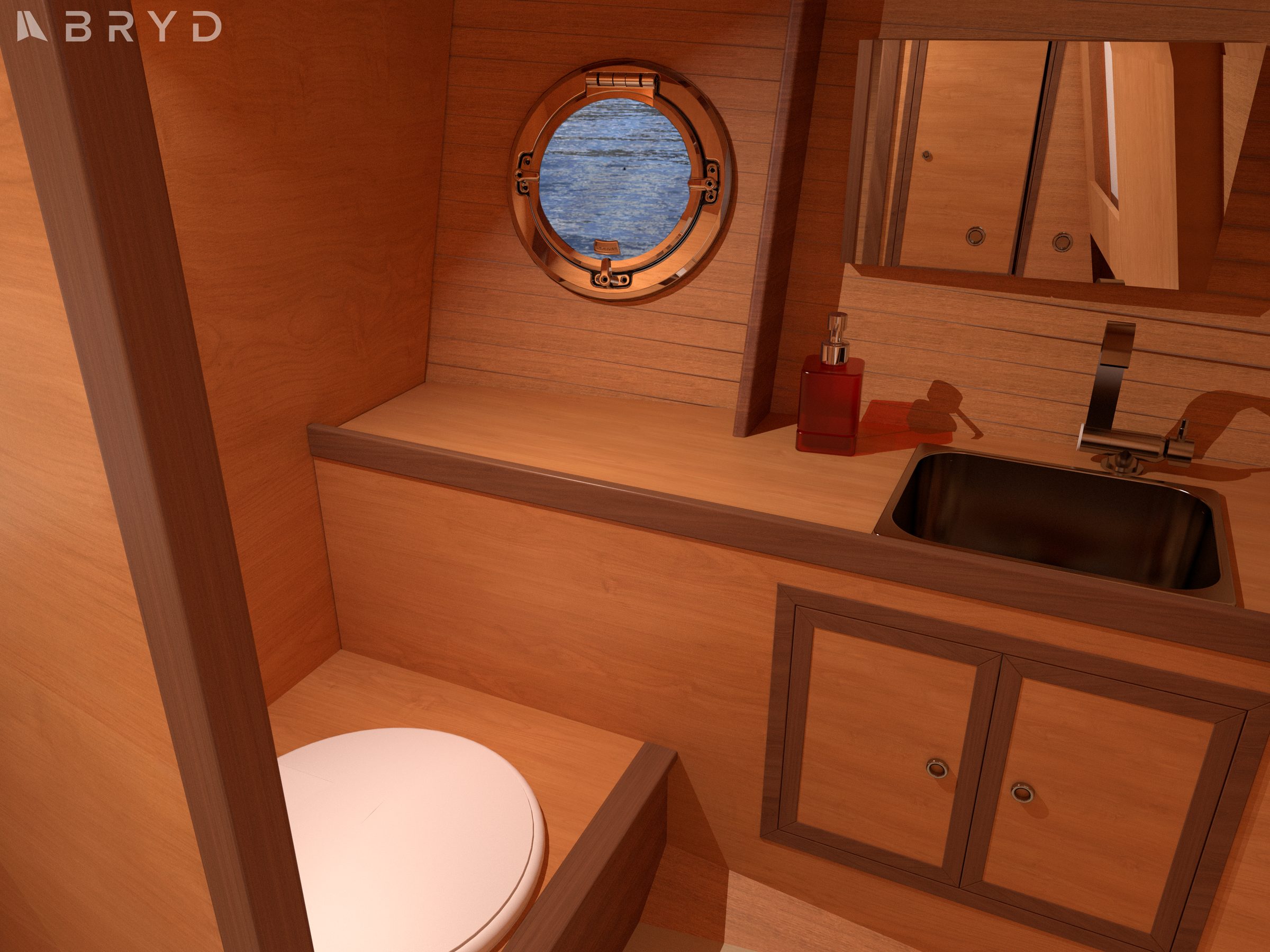

Forward cabin with double berth and separate heads
Deck
Wraparound cockpit seating, aft sun pad and bathing platform
Standards
ISO 12217-1, ISO 8666
Client
Artis Motor Yachts

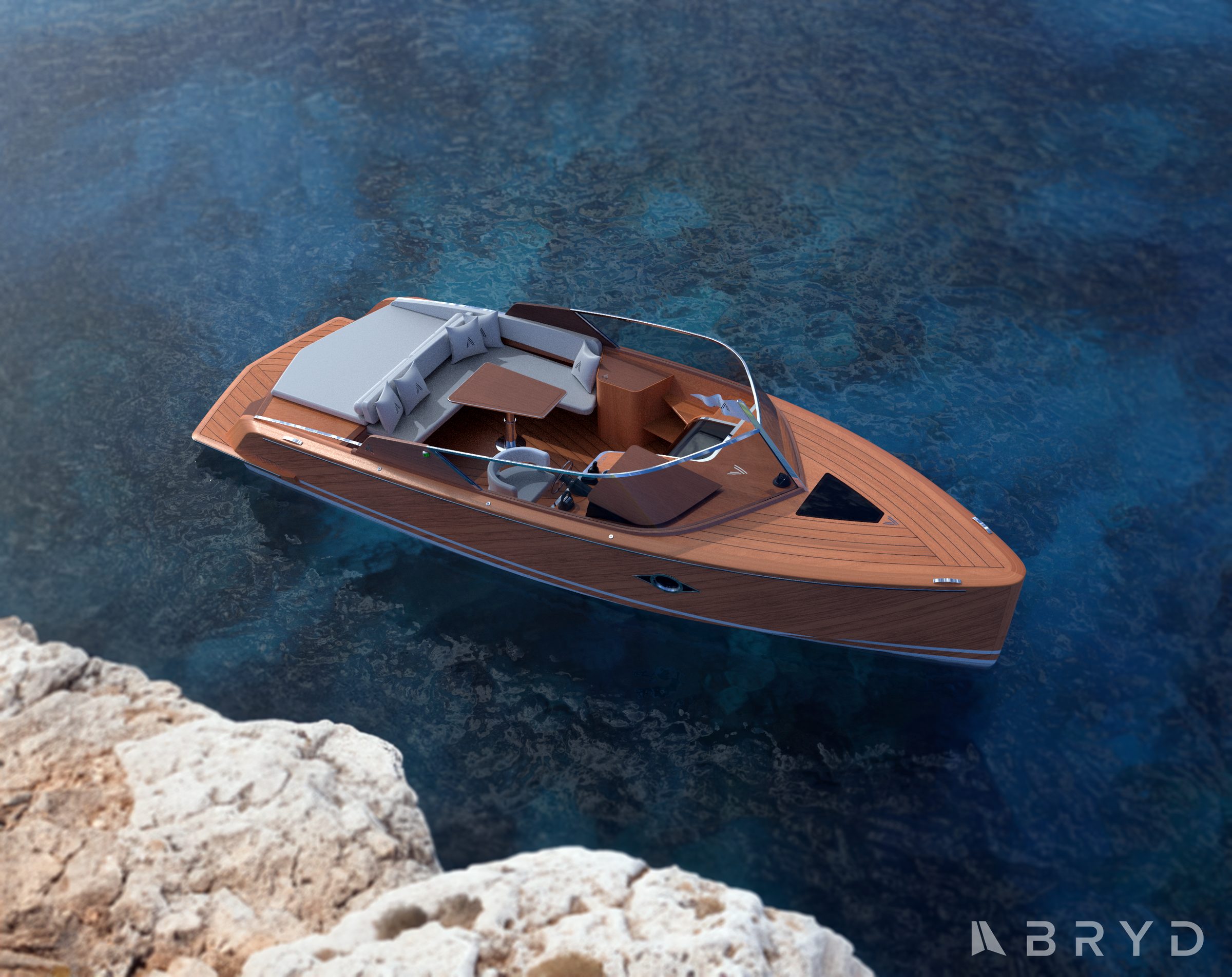

Artis 25 from above, showing the cockpit and sun pad

Design & Engineering

BRYD’s Contribution

BRYD developed the Artis 25 from concept design through naval architecture, structural engineering and production drawings. Our scope included the hull form and general arrangement, exterior and interior styling, power prediction and range analysis, weight studies, stability assessment and the structural arrangement.

Built in Wood

The hull is designed in cedar strip planking sheathed with two ±45° chestnut veneers, supported by chestnut and plywood frames, web frames and bulkheads, with sapele beam shelves. The result is a light, stiff and durable timber structure with the warmth of traditional boatbuilding. Strip-planked and cold-moulded scantling arrangements were compared during development to balance weight, strength and build method.

Designed for Electric Propulsion

Electric power shaped the hull from the outset. Power prediction across light, half-load and fully loaded conditions, together with a hull-beam series study, was used to refine the hull for efficiency. At around 20 kW the Artis 25 cruises at around 10 knots, giving a range of approximately 33 nautical miles from its 60 kWh battery system. Stern-drive and shaft-line propulsion arrangements were both developed.

Compliance

The design was assessed to ISO 12217-1 for Design Category C (inshore waters) with up to eight persons on board, including downflooding and offset-load criteria, with principal dimensions defined to ISO 8666.

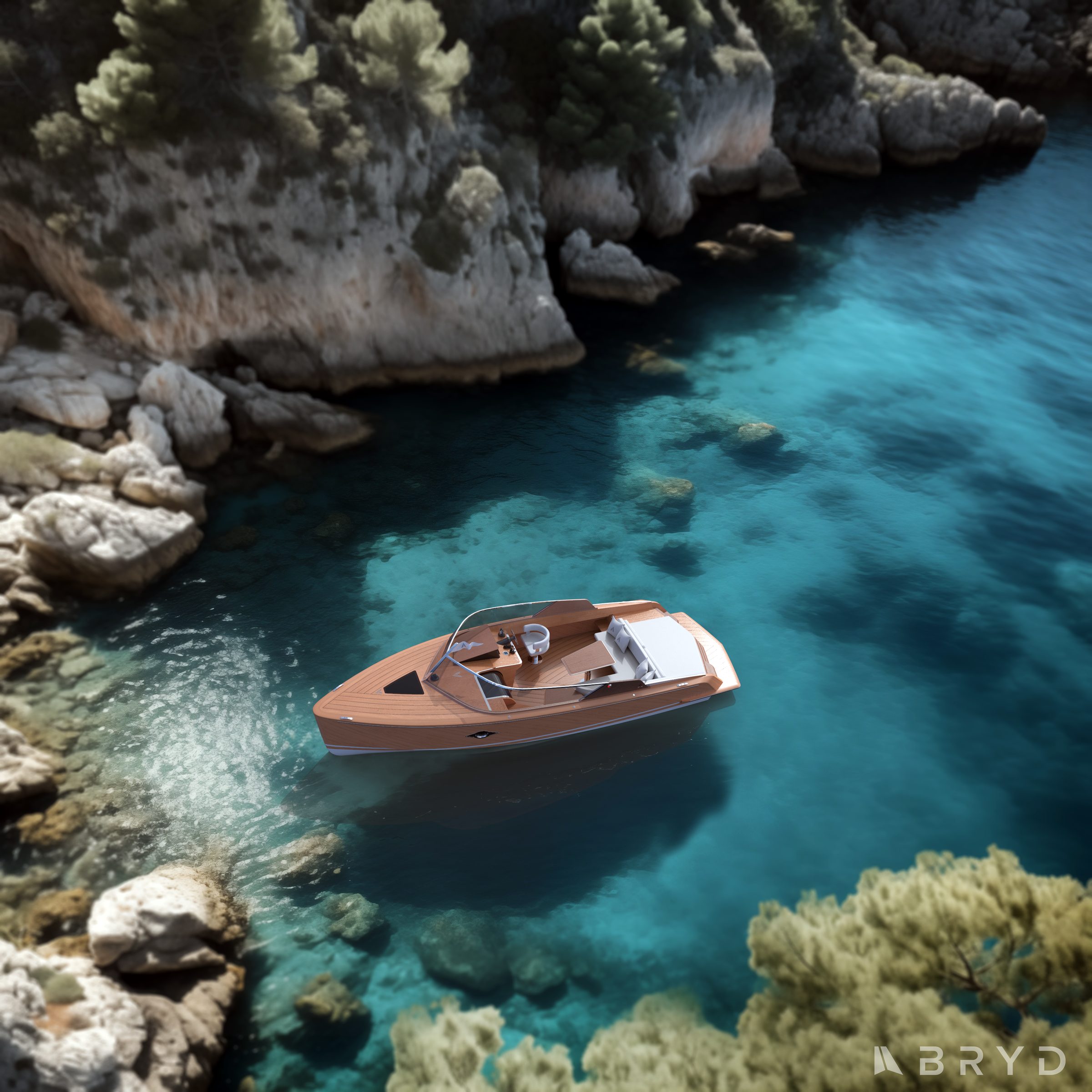

Artis 25 electric wooden day cruiser on the water

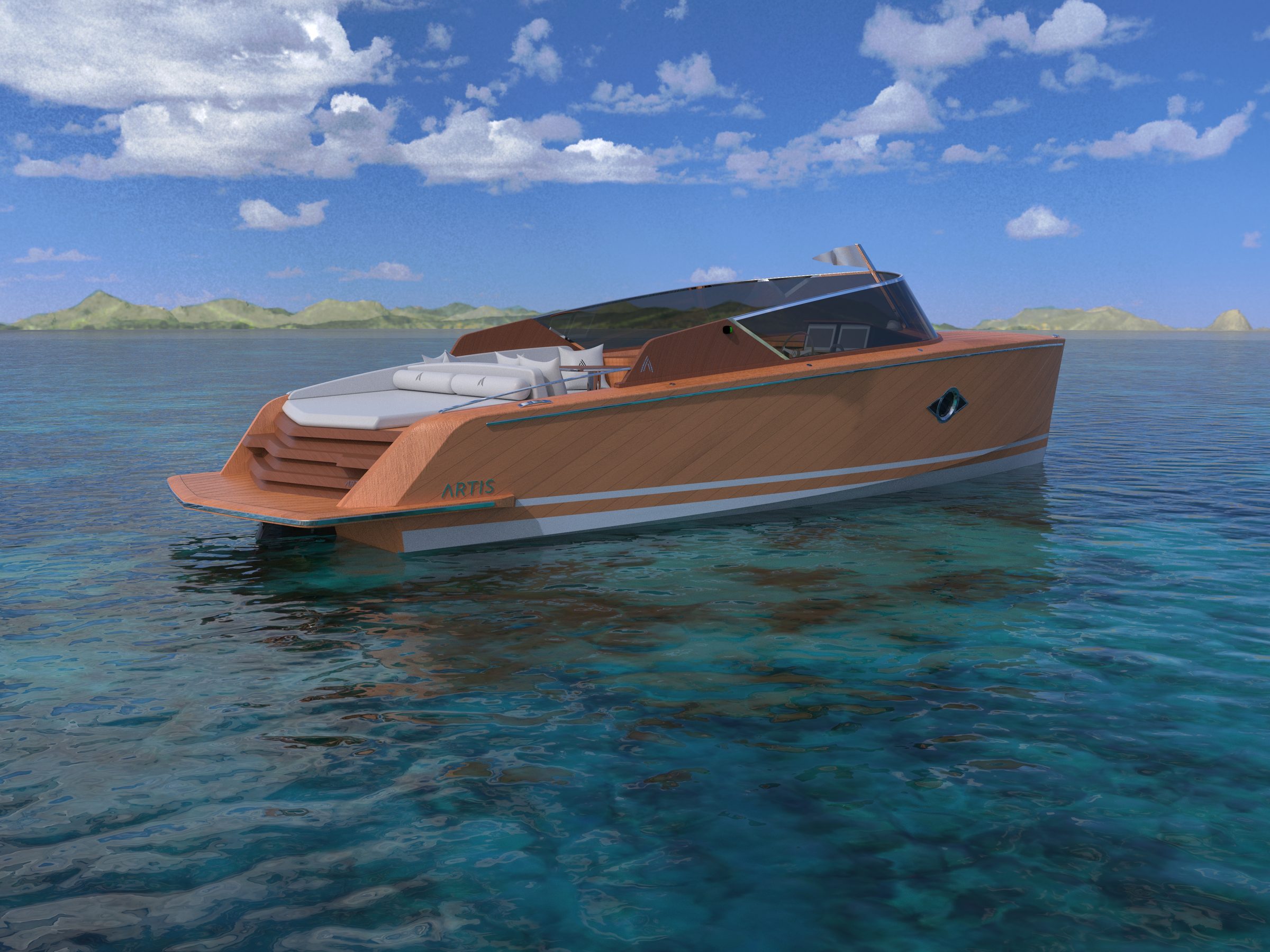

Artis 25 aft quarter view
